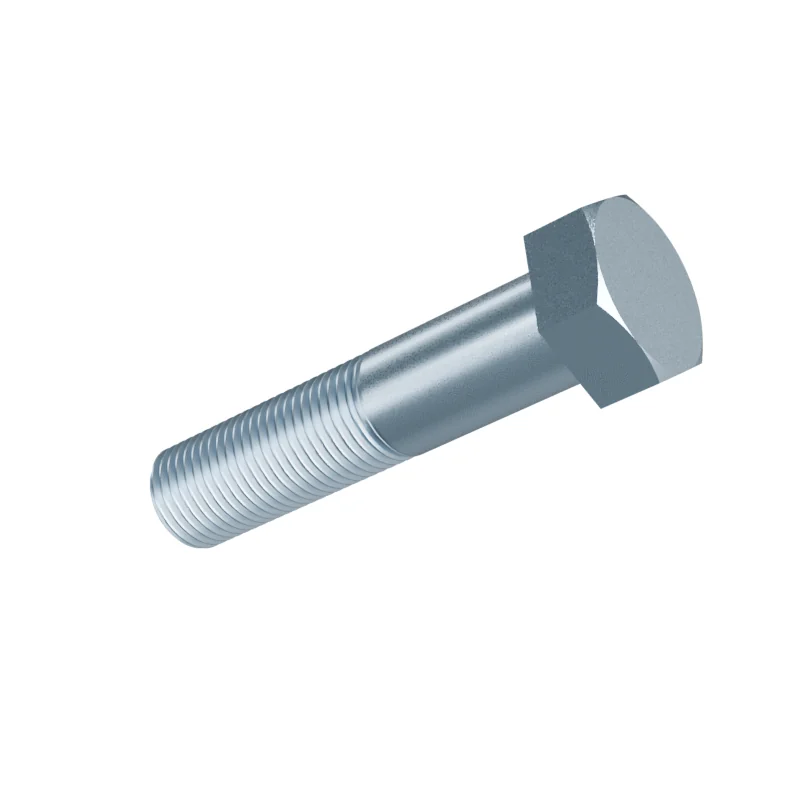

DIN 960 M20 x 90 Fine Pitch Hex Bolt
In stock in 20 material, grade and finish combinations.
Dimensions at M20 x 90
mm · DIN 960 · dimensions from 1970-11 · 1990-01, withdrawn| Dimension | Nominal | Min | Max | ISO 8765 | |
|---|---|---|---|---|---|
| d | Thread size | M20 | – | – | M20 |
| Thread pitch | 2 | – | – | 2 | |
| l | Length | 90 | – | – | 90 |
| s | Width across flats | – | – | 30 | 30 |
| e | Width across corners | – | 33.53 | – | 33.53 |
| k | Head height | 13 | – | – | 12.5 |
- ISO 8765
- Values in bold differ from DIN 960.
- Length under head
- 90 mm
- Approx. weight
- ≈ 290.00 kg per 1 000 pieces · Bare steel, before coating and packing.3.4 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine21 mm
Clearance hole · medium22 mm
Clearance hole · coarse24 mm
Tap drill18 mm
