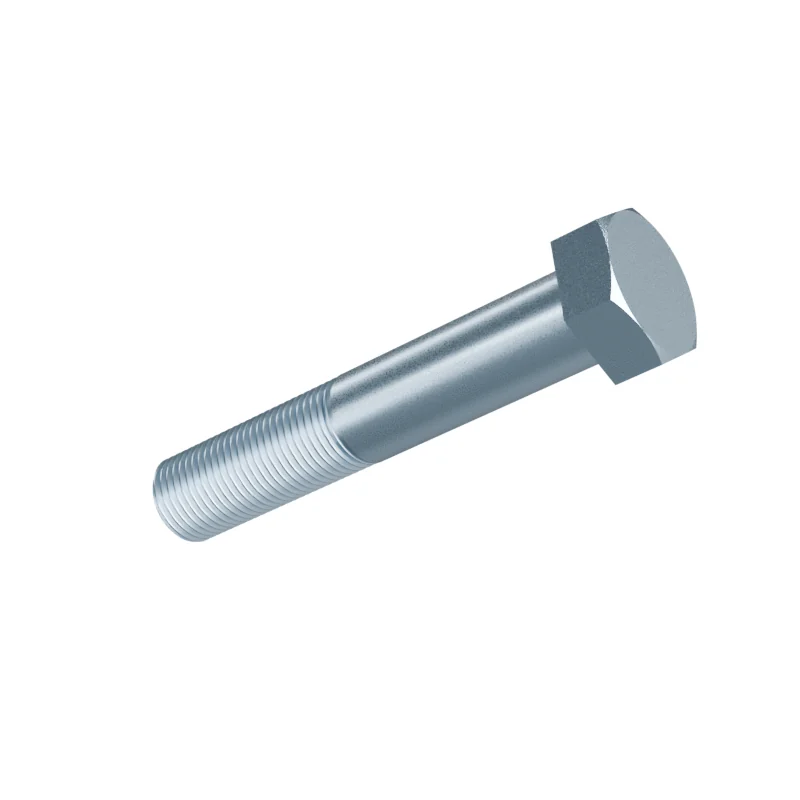

DIN 960 M16×90 Fine Pitch Hex Bolt10 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 960
- Thread
- M16 · pitch 1.5 mm
- Length under head
- 90 mm
- Drive
- 24 mm spanner · e 26.75 mm
- Head height
- 10 mm
- Clearance / tap drill
- 17 / 17.5 / 18.5 mm · 14.5 mm
- Weight
- 168.13 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering5.9 pieces per kg
Supplied to DIN 960 M16×90 — the figures shown here match ISO 8765. All 2 record the same figures in this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M16×90
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
Every standard listed here records the same figures at M16×90. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8.8 | Dacromet | — | |
| Carbon Steel | 8.8 | Phosphate | — | |
| Carbon Steel | 8.8 | Blackened | — | |
| Carbon Steel | 8.8 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M16×90
| Dimension | Value |
|---|---|
| P | 1.5 mm |
| s | 24 mm |
| e | 26.75 mm |
| k | 10 mm |
| Weight | 168.13 kg / 1000 pcs |
| Pieces per kg | 5.9 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 17 / 17.5 / 18.5 mm |
| Tap drill | 14.5 mm |
