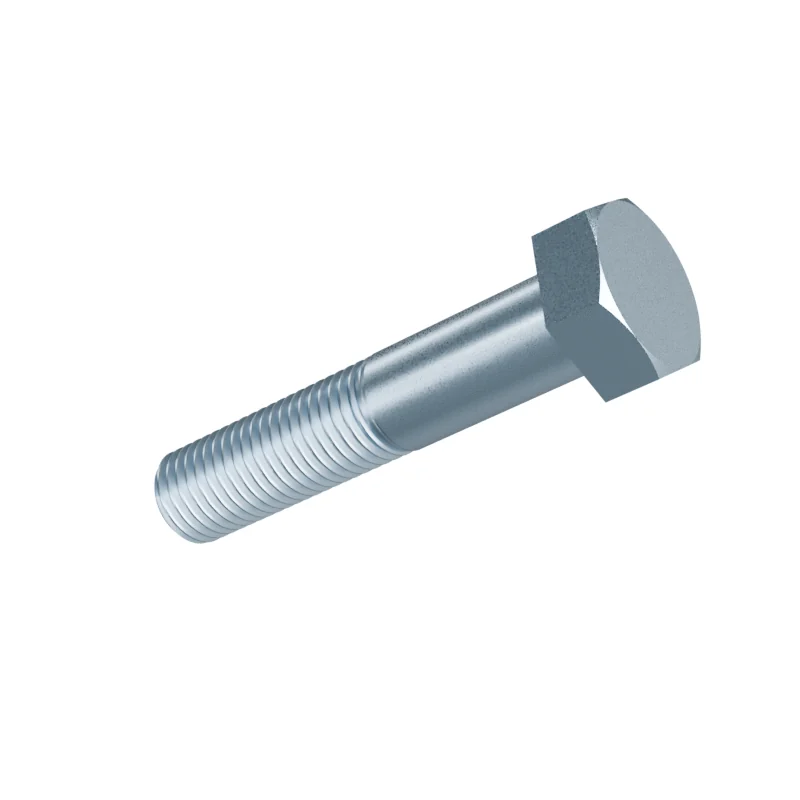

DIN 960 M12 x 60 Fine Pitch Hex Bolt
In stock in 32 material, grade and finish combinations.
Dimensions at M12 x 60
mm · DIN 960 · dimensions from 1970-11 · 1990-01, withdrawn| Dimension | Nominal | Min | Max | ISO 8765 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| Thread pitch | 1.5 | – | – | 1.5 | |
| l | Length | 60 | – | – | 60 |
| s | Width across flats | – | – | 19 | 18 |
| e | Width across corners | – | 21.1 | – | 20.03 |
| k | Head height | 8 | – | – | 7.5 |
- ISO 8765
- Values in bold differ from DIN 960.
- Length under head
- 60 mm
- Approx. weight
- ≈ 68.40 kg per 1 000 pieces · Bare steel, before coating and packing.14.6 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.5 mm
