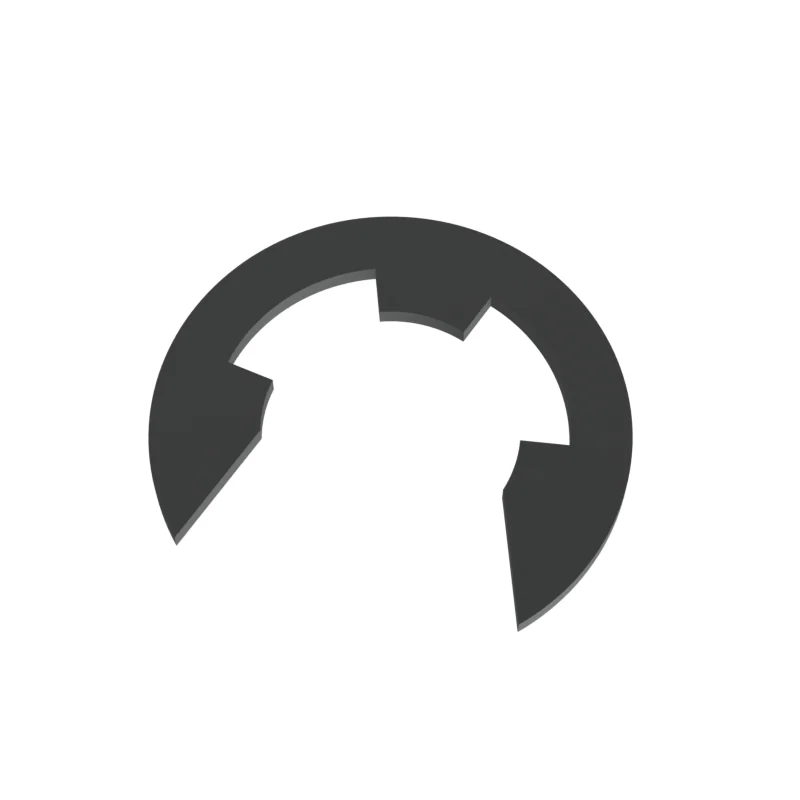

DIN 6799 24 E-Clip Retaining Washer for Shafts
In stock in 5 material, grade and finish combinations.
Dimensions at 24
mm · DIN 6799 · dimensions from 2011-04 · current edition 2026-05| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 24 | – | – |
| d1 | Applicable shaft diameter | – | 25 | 38 |
| s | Ring thickness | 2 | – | – |
| a | Ring opening | – | – | 21.88 |
| d3 | Free diameter | 44.6 | – | – |
| g | Corner distance | 3 | – | – |
| d2 | Groove diameter | 24 | – | – |
| m | Groove width | 2.05 | – | – |
| n | Edge margin | – | 4 | – |
- Approx. weight
- ≈ 8.55 kg per 1 000 pieces · Bare steel, before coating and packing.117 pieces per kg
