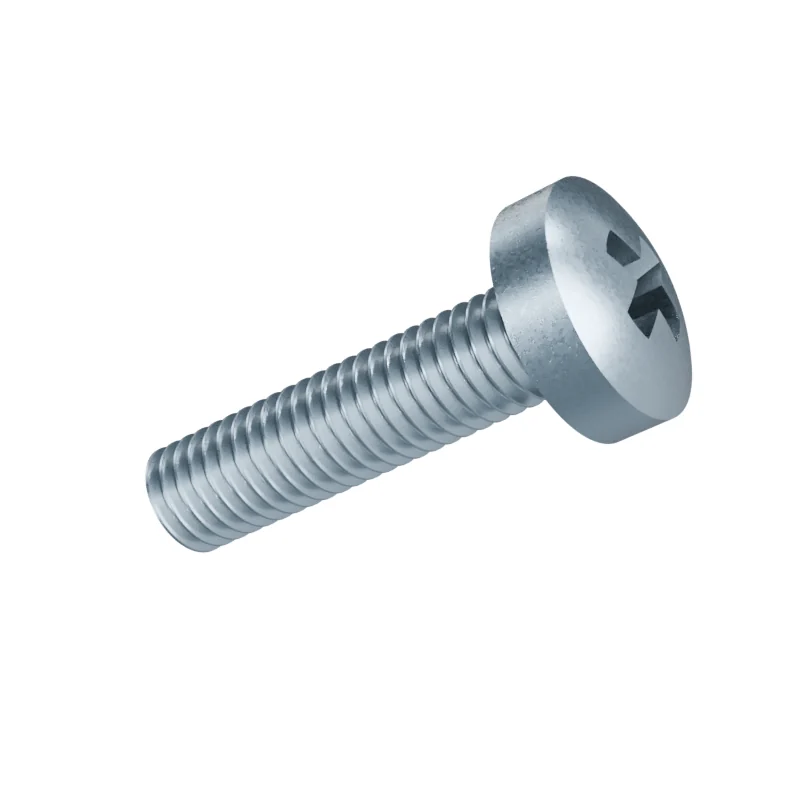

DIN 7985 M5 x 20 Pan Head Screw
In stock in 14 material, grade and finish combinations.
Dimensions at M5 x 20
mm · DIN 7985 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7045 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| Length | 20 | – | – | 20 | |
| dk | Head diameter | 10 | – | – | 9.5 |
| k | Head height | 3.8 | – | – | 3.7 |
| b | Thread length | 25 | – | – | 38 |
- ISO 7045
- Values in bold differ from DIN 7985.
- Length under head
- 20 mm
- Approx. weight
- ≈ 4.27 kg per 1 000 pieces · Bare steel, before coating and packing.234 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
