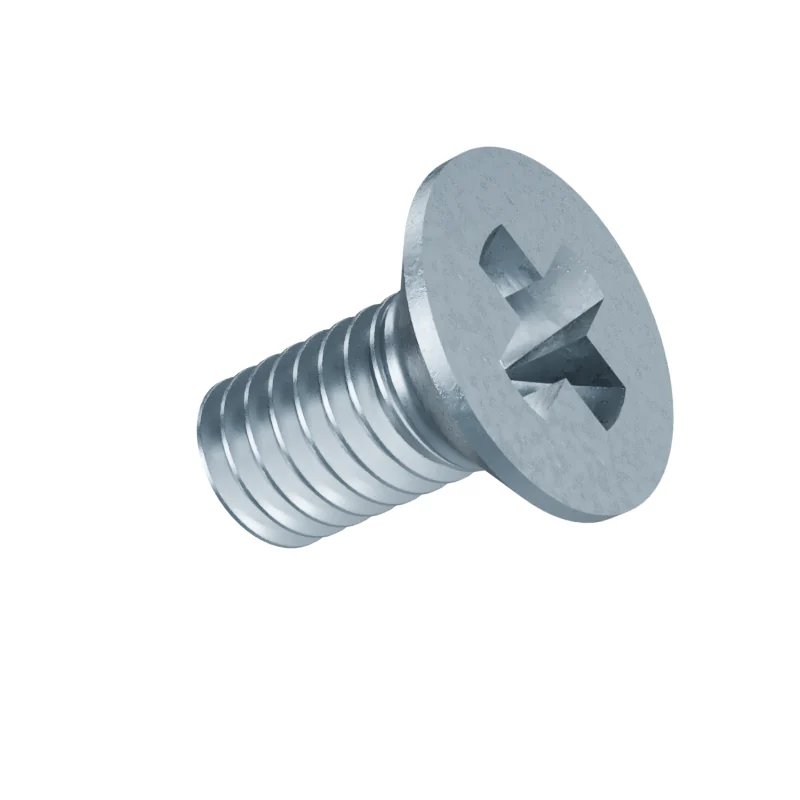

DIN 965 M4 x 8 Countersunk Screw
In stock in 5 material, grade and finish combinations.
Dimensions at M4 x 8
mm · DIN 965 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7046 | |
|---|---|---|---|---|---|
| d | Thread size | M4 | – | – | M4 |
| P | Thread pitch | 0.7 | – | – | 0.7 |
| l | Length | 8 | – | – | 8 |
| dk | Head diameter | 7.5 | – | – | 8.4 |
| k | Head height | 2.2 | – | – | 2.7 |
| b | Thread length | 22 | – | – | 38 |
- ISO 7046
- Values in bold differ from DIN 965.
- Length incl. head
- 8 mm
- Approx. weight
- ≈ 0.91 kg per 1 000 pieces · Bare steel, before coating and packing.1097 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine4.3 mm
Clearance hole · medium4.5 mm
Clearance hole · coarse4.8 mm
Tap drill3.3 mm
