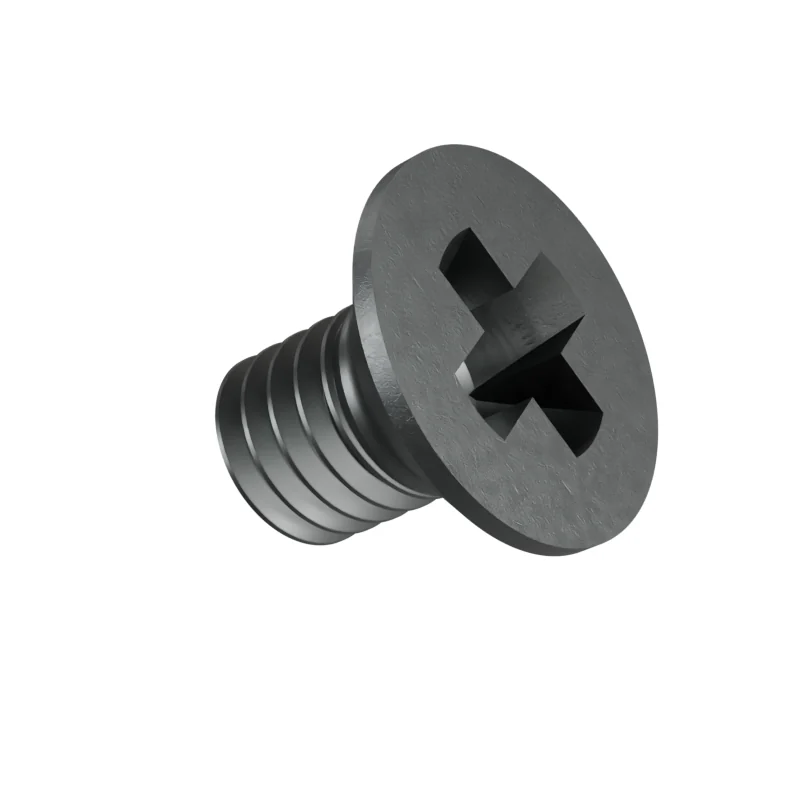

DIN 965 M4×6 Countersunk Screw4 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 965 · 1990-08
- Thread
- M4 · pitch 0.7 mm
- Length under head
- 6 mm
- Head height
- 2.2 mm
- Clearance / tap drill
- 4.3 / 4.5 / 4.8 mm · 3.3 mm
- Weight
- 0.76 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering1321 pieces per kg
Supplied to DIN 965 M4×6. ISO 7046 (dk 8.4 mm against 7.5) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M4×6
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M4×6 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 4.8 | Plain | — | |
| Carbon Steel | 4.8 | Zinc Plated | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A2-70 | Plain | — |
Dimensions at M4×6
| Dimension | Value |
|---|---|
| P | 0.7 mm |
| k | 2.2 mm |
| Weight | 0.76 kg / 1000 pcs |
| Pieces per kg | 1321 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 4.3 / 4.5 / 4.8 mm |
| Tap drill | 3.3 mm |
Other lengths in M4
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M4×6 | 0.76 | this page |
| M4×8 | 0.91 | open |
| M4×10 | 1.07 | open |
| M4×12 | 1.22 | open |
| M4×16 | 1.53 | open |
