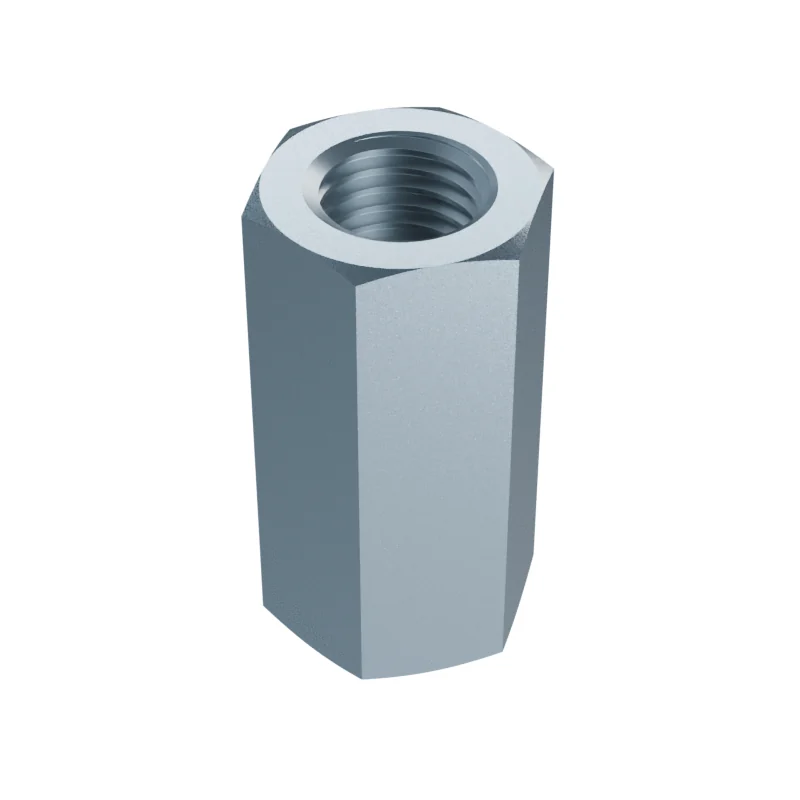

DIN 6334 M24 Hexagon Coupling Nut12 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 6334
- Thread
- M24 · pitch 3 mm
- Drive
- 36 mm spanner · e 39.98 mm
- Weight
- 412.00 kg per 1 000 pieces · From the standard's published table2.4 pieces per kg
Order M24
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8 | Zinc Plated | — | |
| Carbon Steel | 8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8 | Dacromet | — | |
| Carbon Steel | 8 | Blackened | — | |
| Carbon Steel | 8 | Plain | — | |
| Carbon Steel | 10 | Zinc Plated | — | |
| Carbon Steel | 10 | Hot Dip Galvanized | — | |
| Carbon Steel | 10 | Dacromet | — | |
| Carbon Steel | 10 | Blackened | — | |
| Carbon Steel | 10 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A4-80 | Plain | — |
Dimensions at M24
| Dimension | Value |
|---|---|
| P | 3 mm |
| s | 36 mm |
| e | 39.98 mm |
| m | 72 mm |
| Weight | 412.00 kg / 1000 pcs |
| Pieces per kg | 2.4 |
Plating adds thickness — state the finish on the order.
