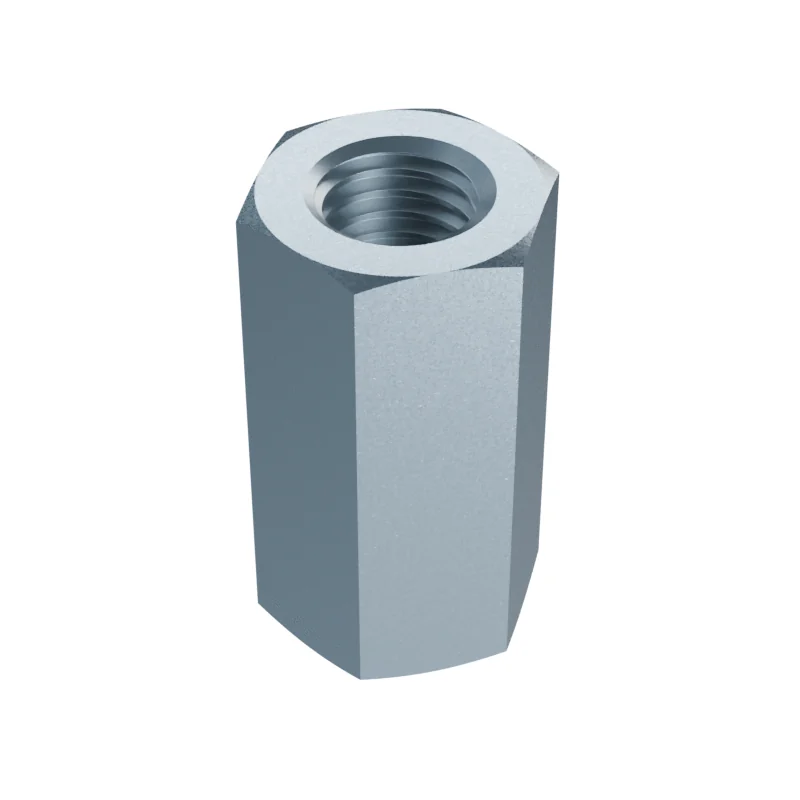

DIN 6334 M12 Hexagon Coupling Nut
In stock in 14 material, grade and finish combinations.
Dimensions at M12
mm · DIN 6334| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| s | Width across flats | – | – | 19 |
| e | Width across corners | – | 21.1 | – |
| m | Nut height | 36 | – | – |
- Approx. weight
- ≈ 63.00 kg per 1 000 pieces · Bare steel, before coating and packing.15.9 pieces per kg
