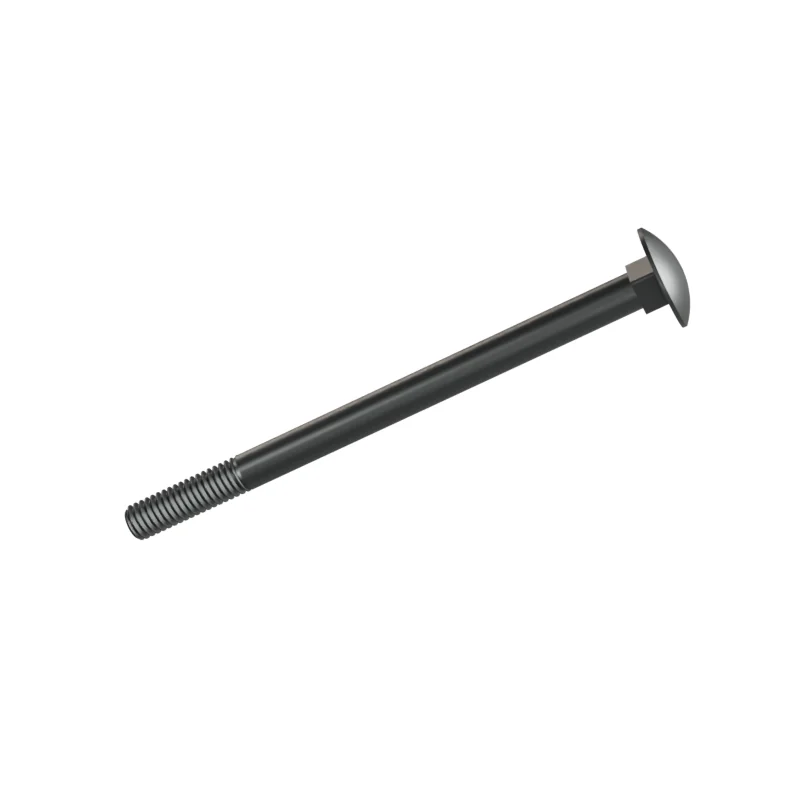

DIN 603 M6 x 90 Carriage Bolt
In stock in 19 material, grade and finish combinations.
Dimensions at M6 x 90
mm · DIN 603 · dimensions from 2010-09 · current edition 2017-05| Dimension | Nominal | Min | Max | ISO 8677 | ISO 8678 | |
|---|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 | M6 |
| P | Thread pitch | 1 | – | – | 1 | 1 |
| Length | 90 | – | – | 90 | 90 | |
| ds | Body diameter | – | 5.52 | 6 | 6.48 | 6 |
| V | Square neck width | – | 5.52 | 6.48 | 5.52–6.48 | 5.88–6.48 |
| fn | Square neck height | – | 3.4 | 4.6 | 3.4–4.6 | 2.4–3 |
| dk | Head diameter | – | 15.45 | 16.55 | 14.9–16 | 14.2 |
| k | Head height | – | 3.12 | 3.88 | 3–3.6 | 3–3.6 |
| b | Thread length (length <= 125) | 18 | – | – | 18 | 18 |
| b | Thread length (125 < length <= 200) | 24 | – | – | — | — |
- ISO 8677, ISO 8678
- Values in bold differ from DIN 603.
- Length under head
- 90 mm
- Approx. weight
- ≈ 19.16 kg per 1 000 pieces · Bare steel, before coating and packing.52.2 pieces per kg
- Also named
- ISO 8677
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
