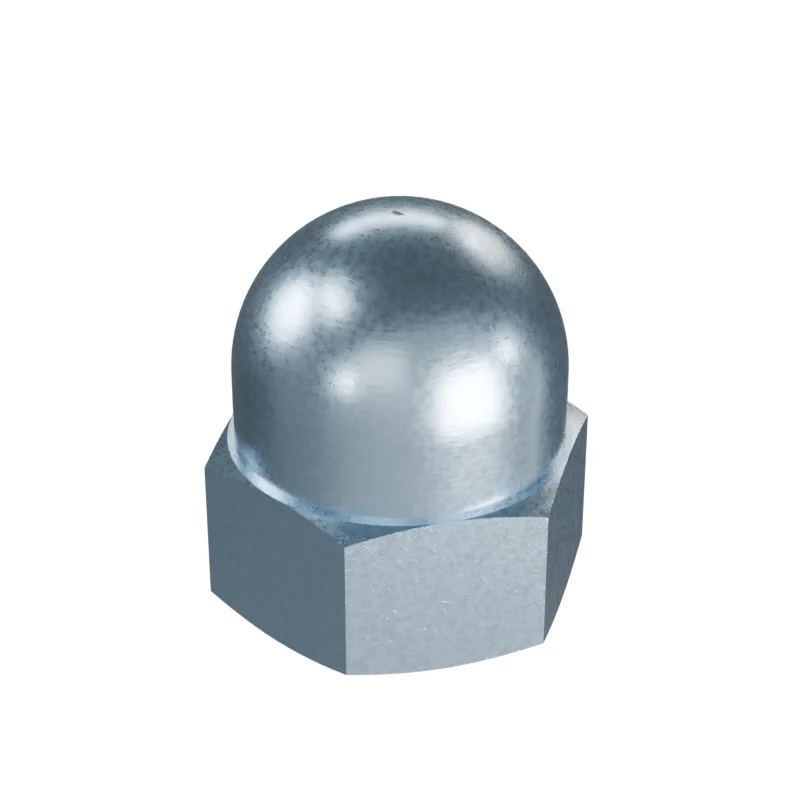

DIN 1587 M6 Hexagon Domed Cap Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M6
mm · DIN 1587 · dimensions from 2000-10 · current edition 2021-11| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| s | Width across flats | – | – | 10 |
| e | Width across corners | – | 11.05 | – |
| m | Nut height | 5 | – | – |
| h | Overall height | 12 | – | – |
| dk | Dome diameter | – | – | 9.5 |
| dw | Bearing diameter | – | 8.9 | – |
| da | Underhead diameter | – | – | 6.75 |
- Approx. weight
- ≈ 4.66 kg per 1 000 pieces · Bare steel, before coating and packing.215 pieces per kg
