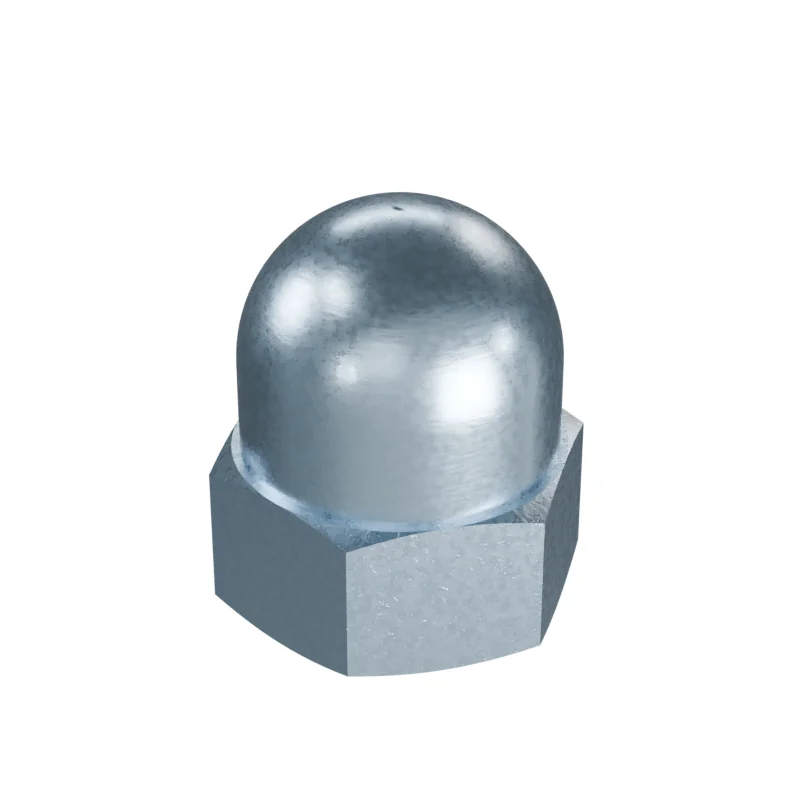

DIN 1587 M5 Hexagon Domed Cap Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M5
mm · DIN 1587 · dimensions from 2000-10 · current edition 2021-11| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M5 | – | – |
| P | Thread pitch | 0.8 | – | – |
| s | Width across flats | – | – | 8 |
| e | Width across corners | – | 8.79 | – |
| m | Nut height | 4 | – | – |
| h | Overall height | 10 | – | – |
| dk | Dome diameter | – | – | 7.5 |
| dw | Bearing diameter | – | 6.9 | – |
| da | Underhead diameter | – | – | 5.75 |
