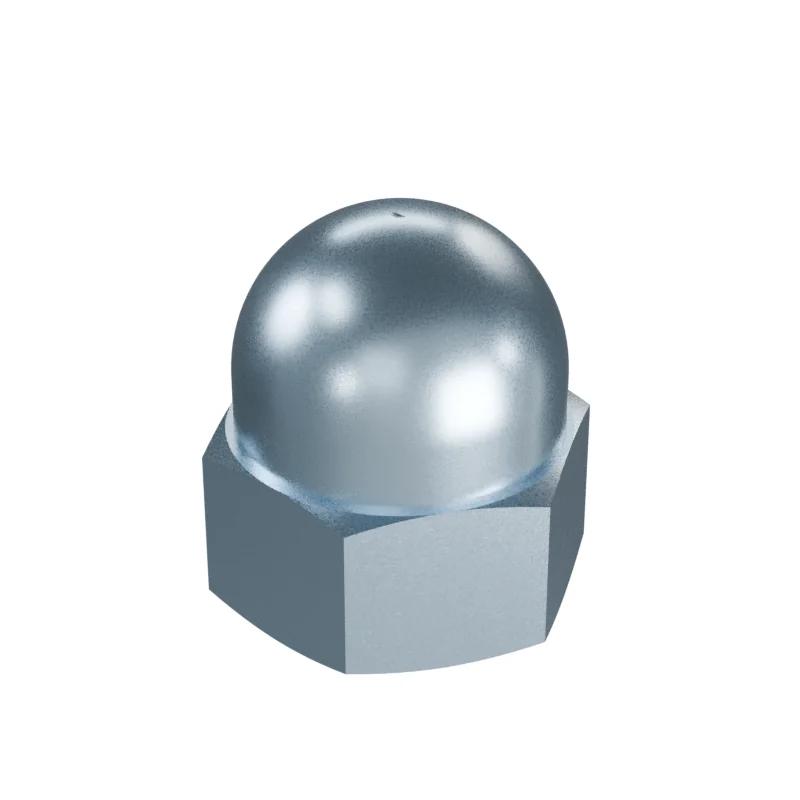

DIN 1587 M24 Hexagon Domed Cap Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M24
mm · DIN 1587 · dimensions from 2000-10 · current edition 2021-11| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M24 | – | – |
| P | Thread pitch | 3 | – | – |
| s | Width across flats | – | – | 36 |
| e | Width across corners | – | 39.98 | – |
| m | Nut height | 19 | – | – |
| h | Overall height | 42 | – | – |
| dk | Dome diameter | – | – | 34 |
| dw | Bearing diameter | – | 33.3 | – |
| da | Underhead diameter | – | – | 25.9 |
- Approx. weight
- ≈ 216.00 kg per 1 000 pieces · Bare steel, before coating and packing.4.6 pieces per kg
