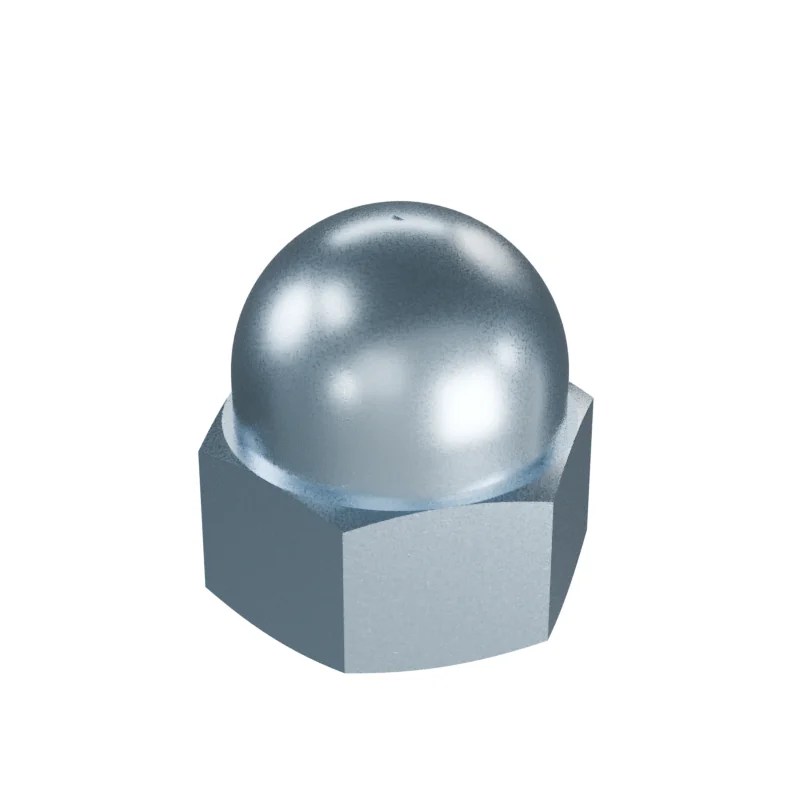

DIN 1587 M20 Hexagon Domed Cap Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M20
mm · DIN 1587 · dimensions from 2000-10 · current edition 2021-11| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M20 | – | – |
| P | Thread pitch | 2.5 | – | – |
| s | Width across flats | – | – | 30 |
| e | Width across corners | – | 33.53 | – |
| m | Nut height | 16 | – | – |
| h | Overall height | 34 | – | – |
| dk | Dome diameter | – | – | 28 |
| dw | Bearing diameter | – | 27.7 | – |
| da | Underhead diameter | – | – | 21.6 |
- Approx. weight
- ≈ 104.00 kg per 1 000 pieces · Bare steel, before coating and packing.9.6 pieces per kg
