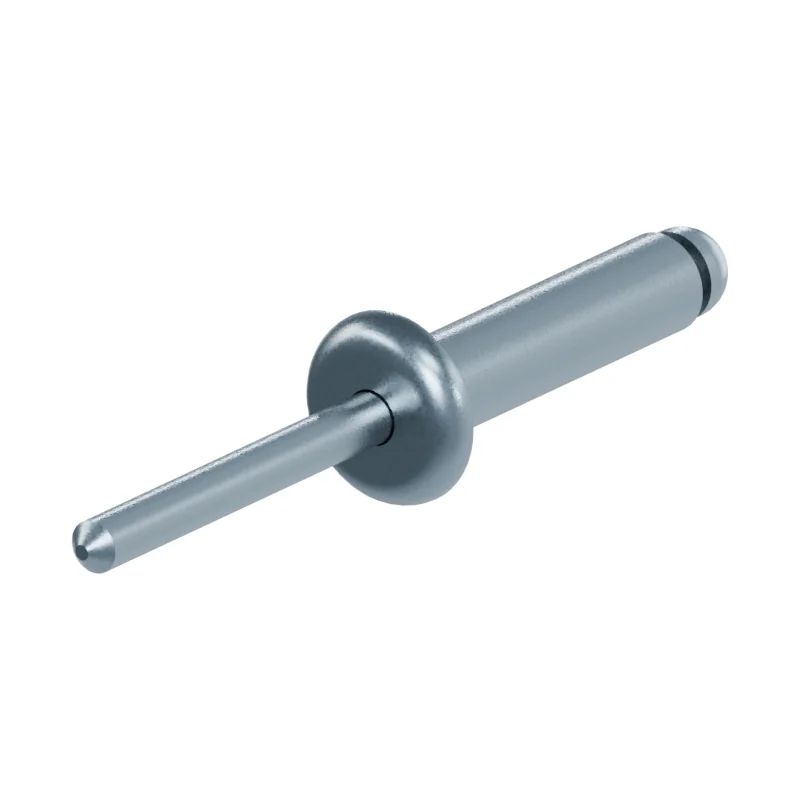

ISO 15979 6 x 25 Protruding Head Blind Rivet
In stock in 2 material, grade and finish combinations.
Dimensions at 6 x 25
mm · ISO 15979 · 2002 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 6 | – | – |
| l | Length | 25 | – | – |
| d | Body diameter | – | 5.85 | 6.08 |
| dk | Head diameter | 12.6 | 10.8 | – |
| k | Head height | 2.5 | – | – |
| dm | Mandrel diameter | – | – | 3.4 |
| p | Mandrel length | – | 27 | – |
| b max | Blind length addition | 5 | – | – |
| dh1 | Clearance hole | – | 6.1 | 6.2 |
- Length under head
- 25 mm · 25–26 mm to ISO 15979
- Approx. weight
- ≈ 10.25 kg per 1 000 pieces · Bare steel, before coating and packing.97.6 pieces per kg
