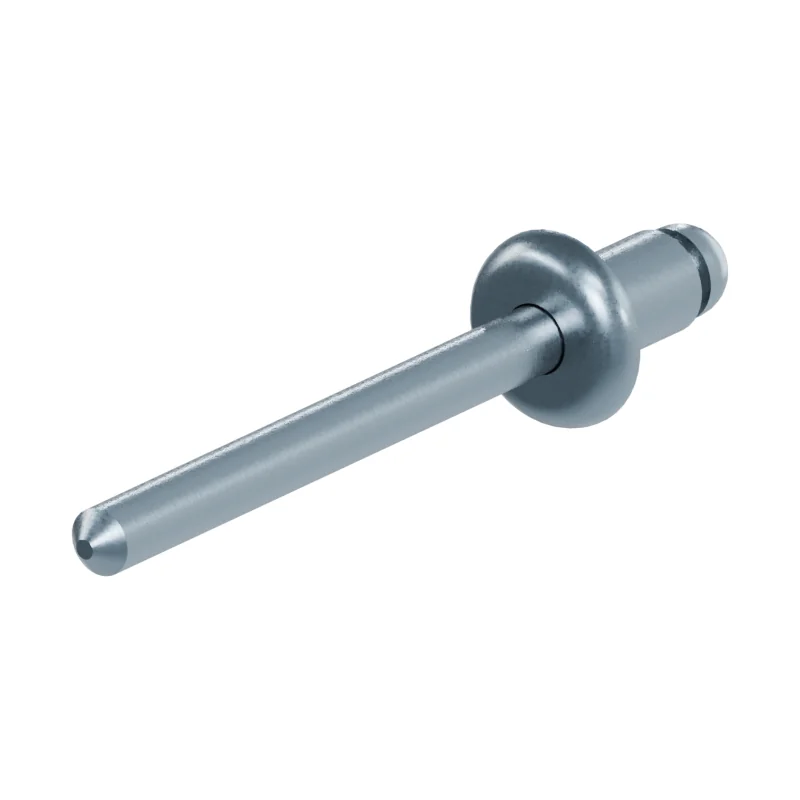

ISO 15979 4 x 6 Protruding Head Blind Rivet
In stock in 2 material, grade and finish combinations.
Dimensions at 4 x 6
mm · ISO 15979 · 2002 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 4 | – | – |
| l | Length | 6 | – | – |
| d | Body diameter | – | 3.85 | 4.08 |
| dk | Head diameter | 8.4 | 6.9 | – |
| k | Head height | 1.7 | – | – |
| dm | Mandrel diameter | – | – | 2.8 |
| p | Mandrel length | – | 27 | – |
| b max | Blind length addition | 4 | – | – |
| dh1 | Clearance hole | – | 4.1 | 4.2 |
- Length under head
- 6 mm · 6–7 mm to ISO 15979
- Approx. weight
- ≈ 2.74 kg per 1 000 pieces · Bare steel, before coating and packing.365 pieces per kg
