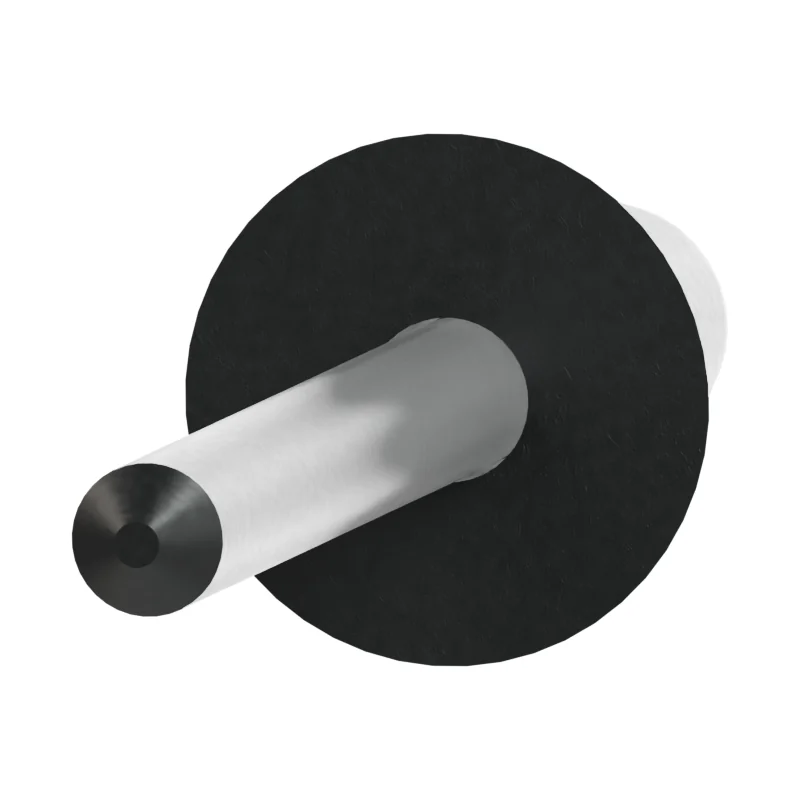

ISO 15978 5 x 12 Countersunk Head Blind Rivet
In stock in 3 material, grade and finish combinations.
Dimensions at 5 x 12
mm · ISO 15978 · 2002 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 5 | – | – |
| l | Length | 12 | – | – |
| d | Body diameter | – | 4.85 | 5.08 |
| dk | Head diameter | 10.5 | 8.7 | – |
| k | Head height | 2.1 | – | – |
| dm | Mandrel diameter | – | – | 2.95 |
| p | Mandrel length | – | 27 | – |
| b max | Blind length addition | 4.5 | – | – |
| dh1 | Clearance hole | – | 5.1 | 5.2 |
- Length incl. head
- 12 mm · 12–13 mm to ISO 15978
- Approx. weight
- ≈ 2.50 kg per 1 000 pieces · Bare steel, before coating and packing.400 pieces per kg
