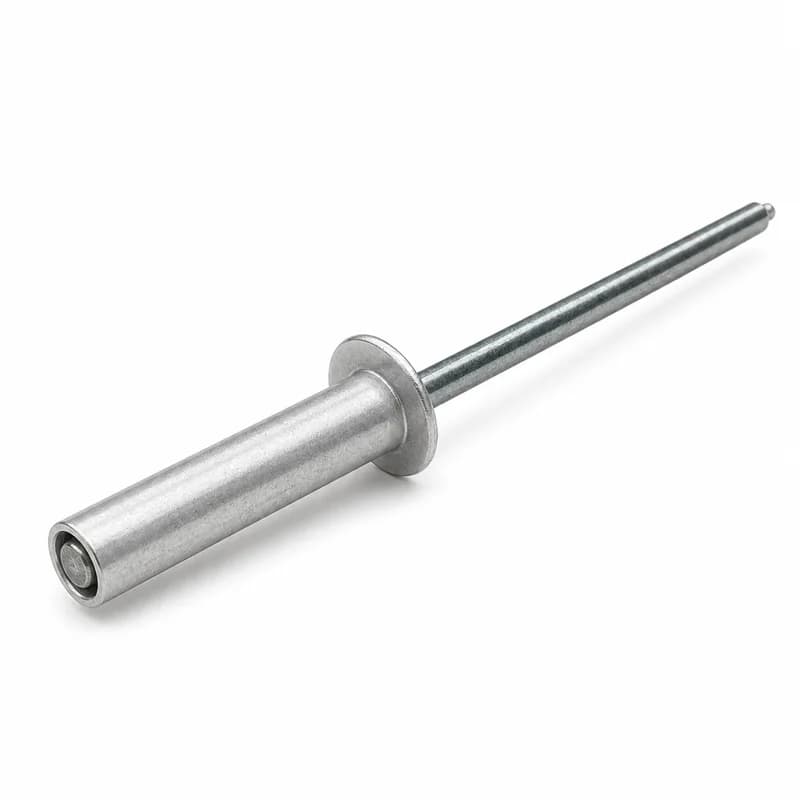

ISO 15977 dimensions — Open end blind rivets, protruding head, AlA/St
- Edition
- 2002 edition, current
- Related
- ISO 14588ISO 14589ISO 3269
ISO 15977 dimensions
mm · 8 sizes, 2.4 – 6.4In stock| Size | dkHead diameter | kHead height | dBody diameter | dmMandrel diameter | pMandrel length | bBlind length addition | dh1Clearance hole |
|---|
| min | nom. | min | max | max | min | max | min | max |
|---|
| 2.4 | 5 | 4.2 | 1 | 2.25 | 2.48 | 1.55 | 25 | 3.5 | 2.5 | 2.6 |
| 3 | 6.3 | 5.4 | 1.3 | 2.85 | 3.08 | 2 | 25 | 3.5 | 3.1 | 3.2 |
| 3.2 | 6.7 | 5.8 | 1.3 | 3.05 | 3.28 | 2 | 25 | 4 | 3.3 | 3.4 |
| 4 | 8.4 | 6.9 | 1.7 | 3.85 | 4.08 | 2.45 | 27 | 4 | 4.1 | 4.2 |
| 4.8 | 10.1 | 8.3 | 2 | 4.65 | 4.88 | 2.95 | 27 | 4.5 | 4.9 | 5 |
| 5 | 10.5 | 8.7 | 2.1 | 4.85 | 5.08 | 2.95 | 27 | 4.5 | 5.1 | 5.2 |
| 6 | 12.6 | 10.8 | 2.5 | 5.85 | 6.08 | 3.4 | 27 | 5 | 6.1 | 6.2 |
| 6.4 | 13.4 | 11.6 | 2.7 | 6.25 | 6.48 | 3.9 | 27 | 5.5 | 6.5 | 6.6 |
Dimensions from ISO 15977:2002, the current edition.
Load values — Table 3 — Mechanical properties
N · ISO 15977:2002 §5 Table 3| Size | L · Minimum shear load | L · Minimum tensile load | H · Minimum shear load | H · Minimum tensile load |
|---|
| 2,4 | 250 | 350 | 350 | 550 |
| 3 | 400 | 550 | 550 | 850 |
| 3,2 | 500 | 700 | 750 | 1100 |
| 4 | 850 | 1200 | 1250 | 1800 |
| 4,8 | 1200 | 1700 | 1850 | 2600 |
| 5 | 1400 | 2000 | 2150 | 3100 |
| 6 | 2100 | 3000 | 3200 | 4600 |
| 6,4 | 2200 | 3150 | 3400 | 4850 |
Load values — Table 3 — Mandrel break load
N · ISO 15977:2002 §5 Table 3| Size | Maximum mandrel break load |
|---|
| 2,4 | 2000 |
| 3 | 3000 |
| 3,2 | 3500 |
| 4 | 5000 |
| 4,8 | 6500 |
| 5 | 6500 |
| 6 | 9000 |
| 6,4 | 11000 |
Load values — Clause 6 — Mandrel push-out resistance
N · ISO 15977:2002 §6| Size | Mandrel push-out resistance (min.) |
|---|
| all sizes | 10 |
Load values — Table 4 — Mandrel head retention test loads
N · ISO 15977:2002 §7 Table 4| Size | Head retention test load |
|---|
| 2,4 | 10 |
| 3 | 15 |
| 3,2 | 15 |
| 4 | 20 |
| 4,8 | 25 |
| 5 | 25 |
| 6 | 30 |
| 6,4 | 50 |
