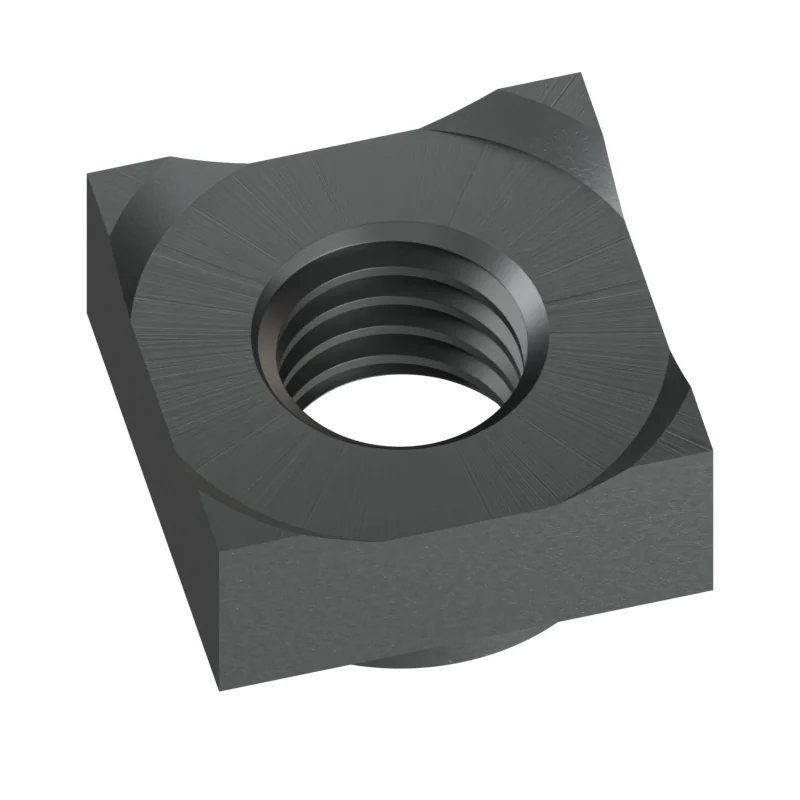

DIN 928 M8 Square Weld Nut
In stock in 1 material, grade and finish combination.
Dimensions at M8
mm · DIN 928 · 2013-12 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M8 | – | – |
| P | Thread pitch | 1.25 | – | – |
| s | Width across flats | – | – | 14 |
| e | Width across corners | – | 18 | – |
| m | Nut height | 6.5 | – | – |
| d3 | Pilot diameter | 12.8 | – | – |
| h1 | Weld projection height h1 | 1 | – | – |
| h2 | Weld projection height h2 | 1.1 | – | – |
- Approx. weight
- ≈ 6.50 kg per 1 000 pieces · Bare steel, before coating and packing.154 pieces per kg
