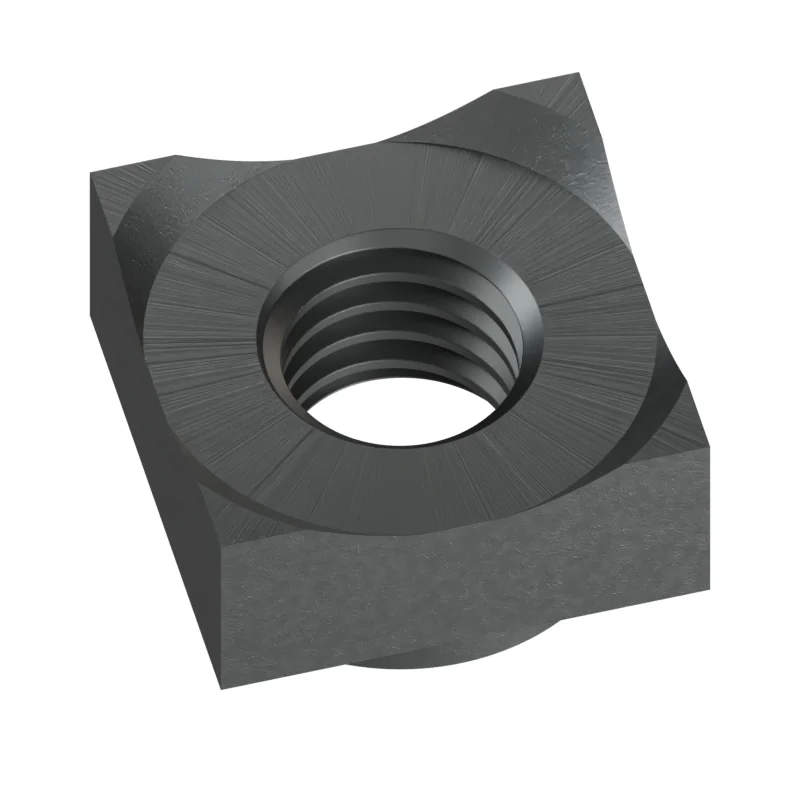

DIN 928 M5 Square Weld Nut
In stock in 1 material, grade and finish combination.
Dimensions at M5
mm · DIN 928 · 2013-12 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M5 | – | – |
| P | Thread pitch | 0.8 | – | – |
| s | Width across flats | – | – | 9 |
| e | Width across corners | – | 12 | – |
| m | Nut height | 4.2 | – | – |
| d3 | Pilot diameter | 8.2 | – | – |
| h1 | Weld projection height h1 | 0.8 | – | – |
| h2 | Weld projection height h2 | 0.6 | – | – |
- Approx. weight
- ≈ 1.70 kg per 1 000 pieces · Bare steel, before coating and packing.588 pieces per kg
