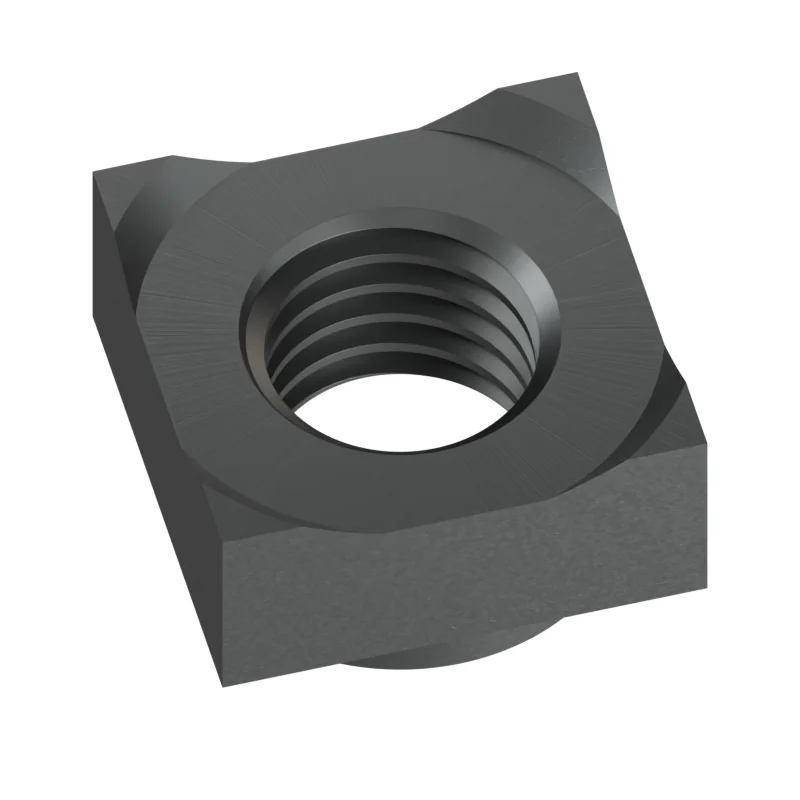

DIN 928 M12 Square Weld Nut
In stock in 1 material, grade and finish combination.
Dimensions at M12
mm · DIN 928 · 2013-12 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| s | Width across flats | – | – | 19 |
| e | Width across corners | – | 25 | – |
| m | Nut height | 9.5 | – | – |
| d3 | Pilot diameter | 17.4 | – | – |
| h1 | Weld projection height h1 | 1.4 | – | – |
| h2 | Weld projection height h2 | 1.75 | – | – |
- Approx. weight
- ≈ 16.50 kg per 1 000 pieces · Bare steel, before coating and packing.60.6 pieces per kg
