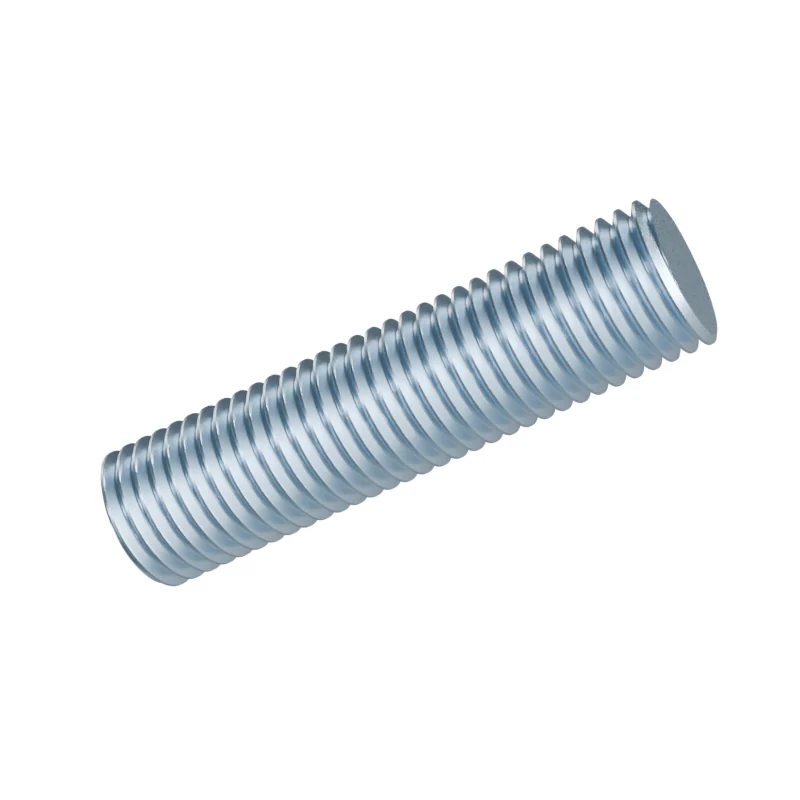

DIN 976-1 M20 x 80 Threaded Rod
In stock in 10 material, grade and finish combinations.
Dimensions at M20 x 80
mm · DIN 976-1 · current edition 2016-09| Dimension | Nominal | Min | Max | DIN 975 | |
|---|---|---|---|---|---|
| d | Thread size | M20 | – | – | M20 |
| P | Thread pitch | 2.5 | – | – | 2.5 |
| lt | Length | 80 | – | – | 80 |
- DIN 975
- Values in bold differ from DIN 976-1.
- Length
- 80 mm · 79.4–80.6 mm to DIN 976-1
- Approx. weight
- ≈ 167.00 kg per 1 000 pieces · Bare steel, before coating and packing.6.0 pieces per kg
Other lengths in M20
All 45 sizes of Threaded StudStandardsDIN 976-1DIN 975GB/T 15389All sizes
