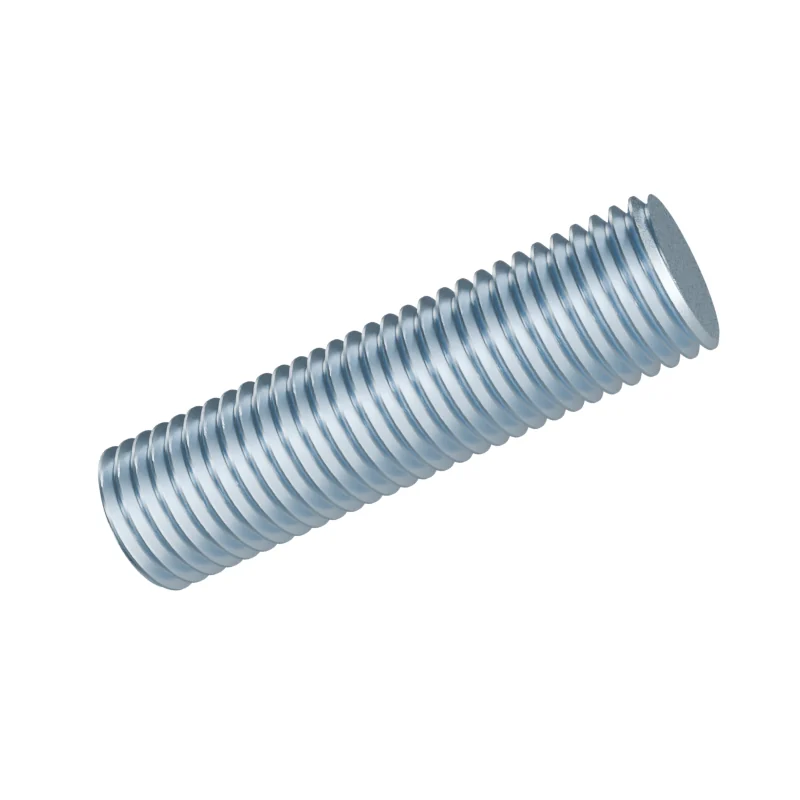

DIN 976-1 M16 x 60 Threaded Rod
In stock in 10 material, grade and finish combinations.
Dimensions at M16 x 60
mm · DIN 976-1 · current edition 2016-09| Dimension | Nominal | Min | Max | DIN 975 | |
|---|---|---|---|---|---|
| d | Thread size | M16 | – | – | M16 |
| P | Thread pitch | 2 | – | – | 2 |
| lt | Length | 60 | – | – | 60 |
- DIN 975
- Values in bold differ from DIN 976-1.
- Length
- 60 mm · 59.4–60.6 mm to DIN 976-1
- Approx. weight
- ≈ 80.00 kg per 1 000 pieces · Bare steel, before coating and packing.12.5 pieces per kg
Other lengths in M16
All 45 sizes of Threaded StudStandardsDIN 976-1DIN 975GB/T 15389All sizes
