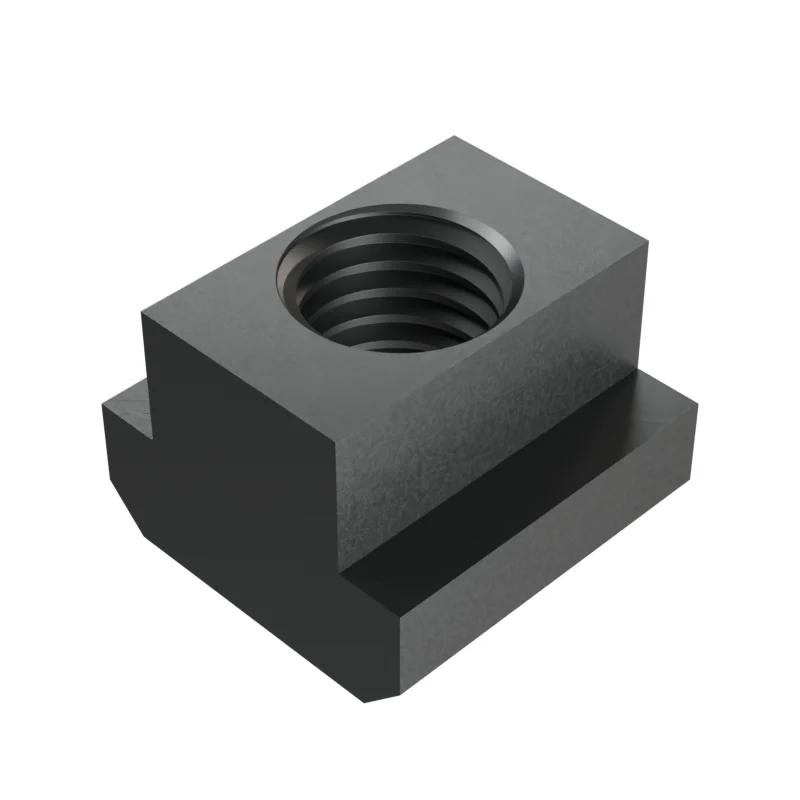

DIN 508 M12 Nut for T-Slots
In stock in 4 material, grade and finish combinations.
Dimensions at M12
mm · DIN 508 · 2002-06 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| Thread pitch | 1.75 | – | – | |
| a | T-Slot width | 14 | – | – |
| e | Width across corners | – | 22 | – |
| f | Raised head height (ref) | 2.5 | – | – |
| h | Washer thickness | 16 | – | – |
| k | Head height | 8 | 7.5 | – |
| Approx. mass | 35 | – | – |
- Approx. weight
- ≈ 35.00 kg per 1 000 pieces · Bare steel, before coating and packing.28.6 pieces per kg
