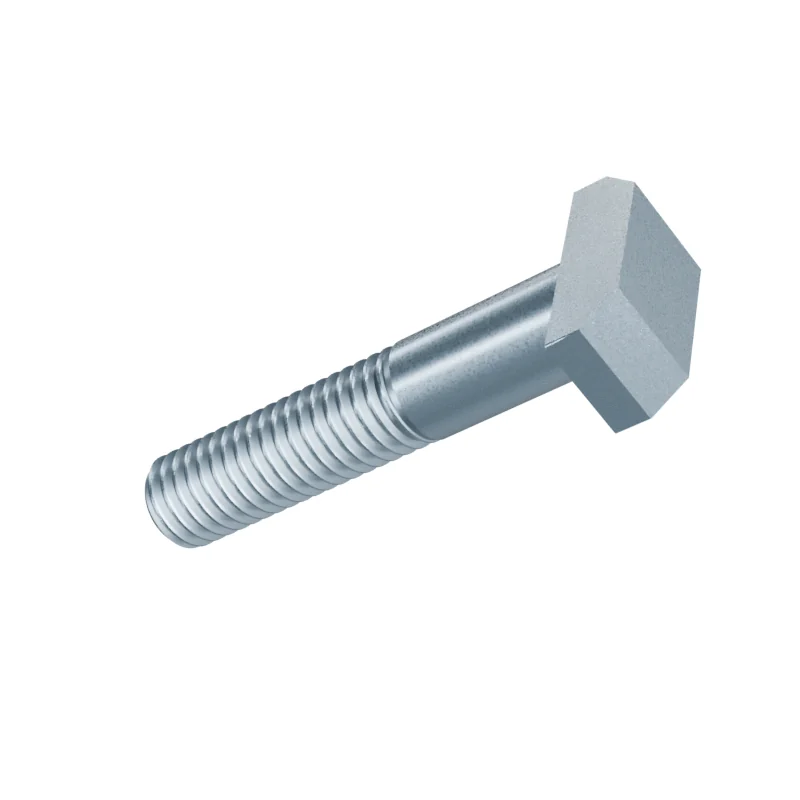

DIN 261 M8×40 T-Head Bolt5 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 261 · 2024-12
- Thread
- M8 · pitch 1.25 mm
- Length under head
- 40 mm
- Clearance / tap drill
- 8.4 / 9 / 10 mm · 6.8 mm
- Weight
- 14.68 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering68.1 pieces per kg
Order M8×40
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M8×40
| Dimension | Value |
|---|---|
| P | 1.25 mm |
| Weight | 14.68 kg / 1000 pcs |
| Pieces per kg | 68.1 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 8.4 / 9 / 10 mm |
| Tap drill | 6.8 mm |
