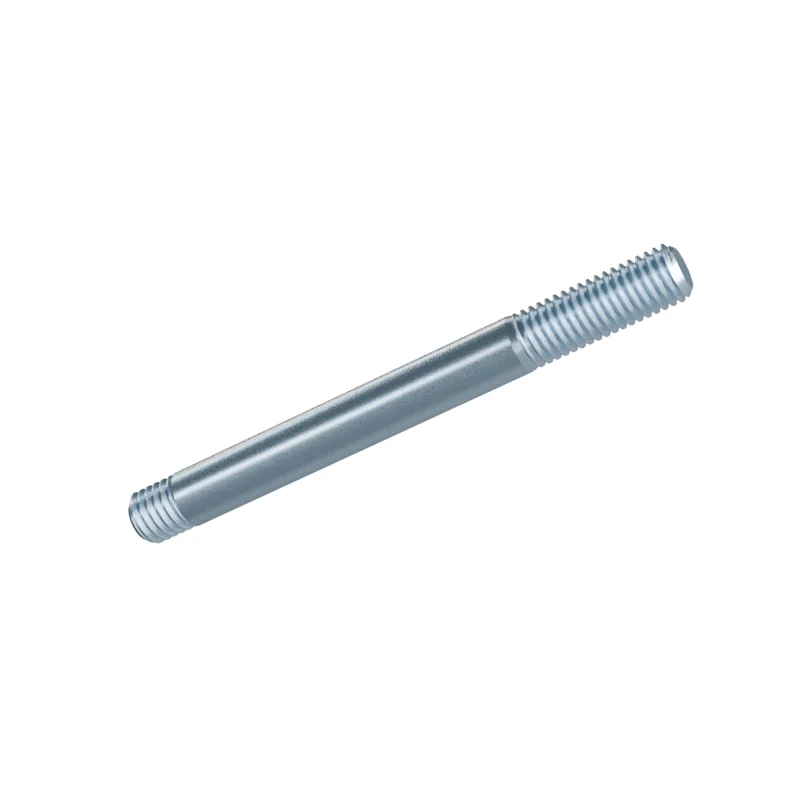

DIN 938 M10 x 95 Metal End 1d Double End Stud
In stock in 10 material, grade and finish combinations.
Dimensions at M10 x 95
mm · DIN 938 · dimensions from 2012-12 · current edition 2025-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| P | Thread pitch | 1.5 | – | – |
| l | Length | 95 | – | – |
| bm | Metal end thread length | 10 | – | – |
| b | Thread length | 26 | – | – |
| ds | Stud shank diameter | – | 9.78 | 10 |
| x1 | Thread runout x1 | 3.8 | – | – |
| x2 | Thread runout x2 | 1.9 | – | – |
- Length excl. metal end
- 95 mm · 94.3–95.7 mm to DIN 938
- Approx. weight
- ≈ 60.20 kg per 1 000 pieces · Bare steel, before coating and packing.16.6 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
