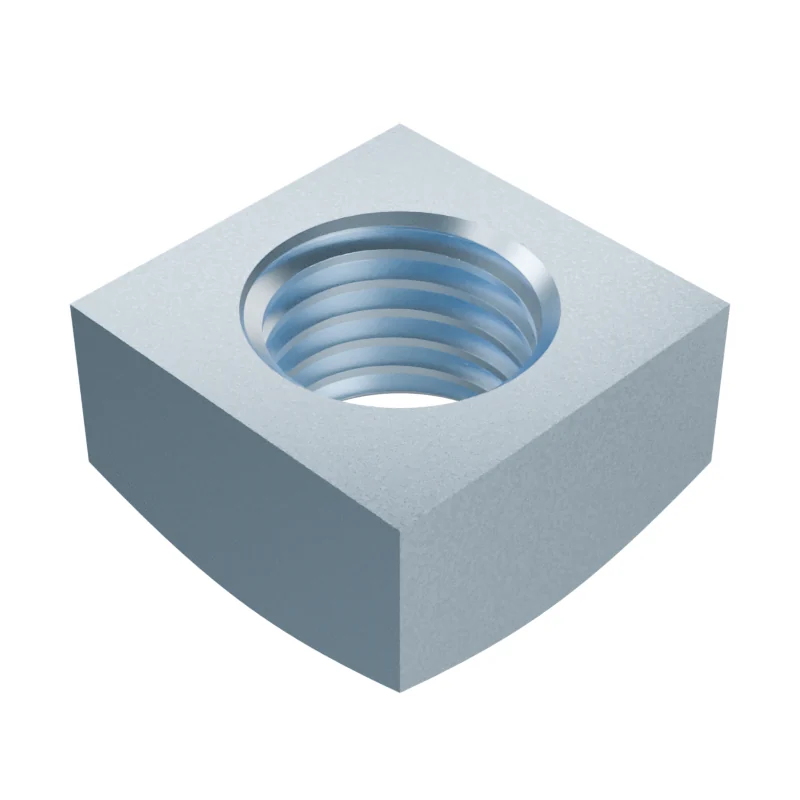

DIN 557 M16 Square Nut
In stock in 10 material, grade and finish combinations.
Dimensions at M16
mm · DIN 557 · current edition 2026-02| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M16 | – | – |
| P | Thread pitch | 2 | – | – |
| dw | Bearing diameter | – | 22 | – |
| e | Width across corners | – | 30.11 | 33.9 |
| m | Nut height | 13 | 12.3 | – |
| Wrenching height | – | 8.6 | – | |
| s | Width across flats | – | 23.16 | 24 |
- Approx. weight
- ≈ 36.72 kg per 1 000 pieces · Bare steel, before coating and packing.27.2 pieces per kg
