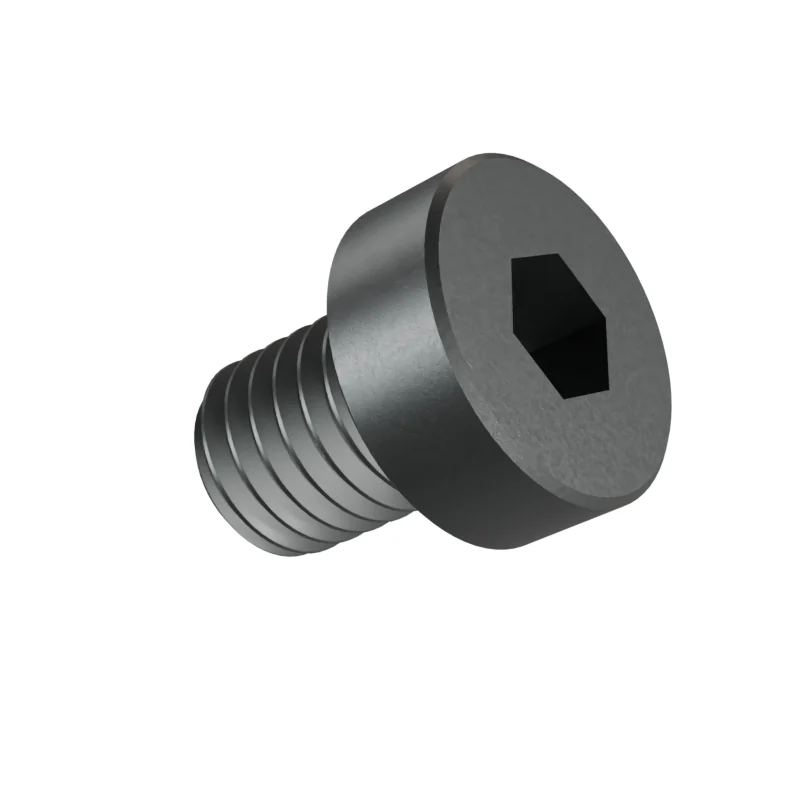

DIN 7984 M8 x 10 Low Head Socket Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M8 x 10
mm · DIN 7984 · dimensions from 2009-06 · current edition 2022-03| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M8 | – | – |
| P | Thread pitch | 1.25 | – | – |
| Length | 10 | – | – | |
| s | Hex socket size | 5 | – | – |
| dk | Head diameter | 13 | – | – |
| k | Head height | 5 | – | – |
- Length under head
- 10 mmShorter than the DIN 7984 table (from 12 mm) — supplied to works standard
- Approx. weight
- ≈ 7.56 kg per 1 000 pieces · Bare steel, before coating and packing.132 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill6.8 mm
