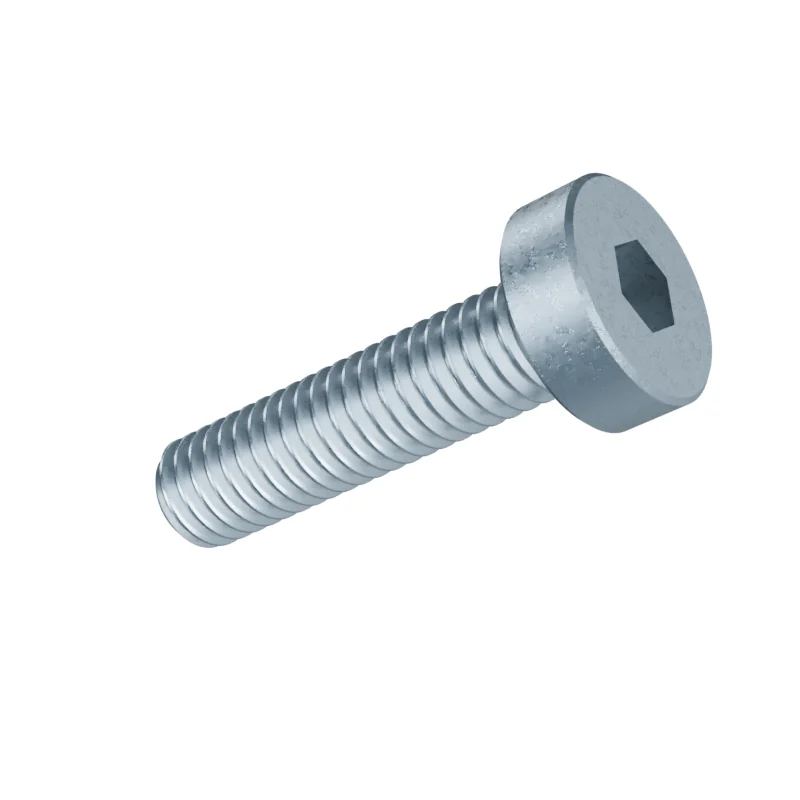

DIN 7984 M3 x 12 Low Head Socket Cap Screw
In stock in 15 material, grade and finish combinations.
Dimensions at M3 x 12
mm · DIN 7984 · dimensions from 2009-06 · current edition 2022-03| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M3 | – | – |
| P | Thread pitch | 0.5 | – | – |
| Length | 12 | – | – | |
| s | Hex socket size | 2 | – | – |
| dk | Head diameter | 5.5 | – | – |
| k | Head height | 2 | – | – |
- Length under head
- 12 mm
- Approx. weight
- ≈ 0.84 kg per 1 000 pieces · Bare steel, before coating and packing.1187 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine3.2 mm
Clearance hole · medium3.4 mm
Clearance hole · coarse3.6 mm
Tap drill2.5 mm
