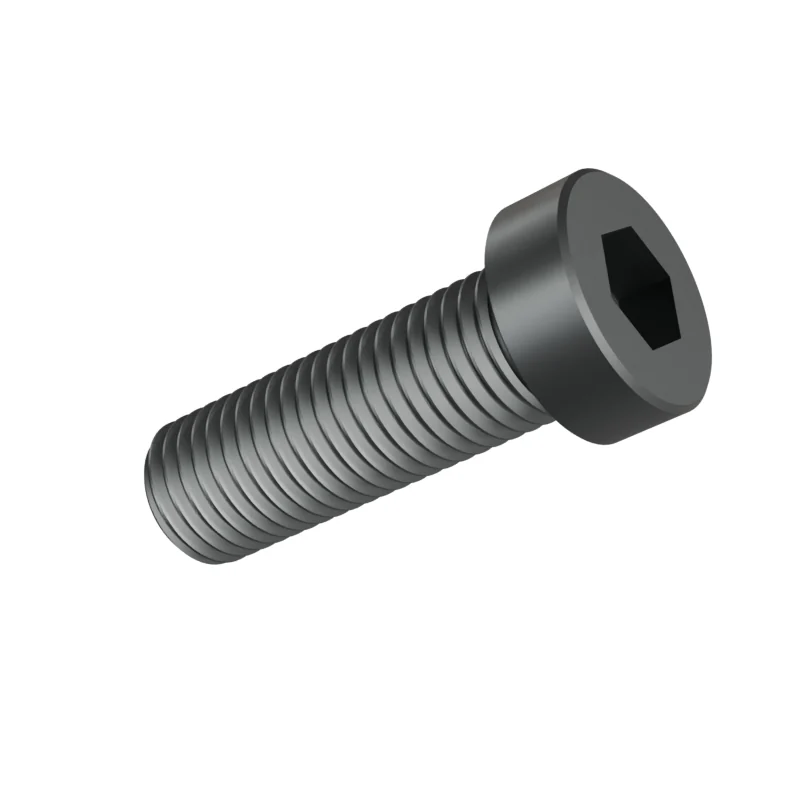

DIN 7984 M20 x 60 Low Head Socket Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M20 x 60
mm · DIN 7984 · dimensions from 2009-06 · current edition 2022-03| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M20 | – | – |
| P | Thread pitch | 2.5 | – | – |
| Length | 60 | – | – | |
| s | Hex socket size | 14 | – | – |
| dk | Head diameter | 30 | – | – |
| k | Head height | 11 | – | – |
- Length under head
- 60 mm
- Approx. weight
- ≈ 181.51 kg per 1 000 pieces · Bare steel, before coating and packing.5.5 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine21 mm
Clearance hole · medium22 mm
Clearance hole · coarse24 mm
Tap drill17.5 mm
