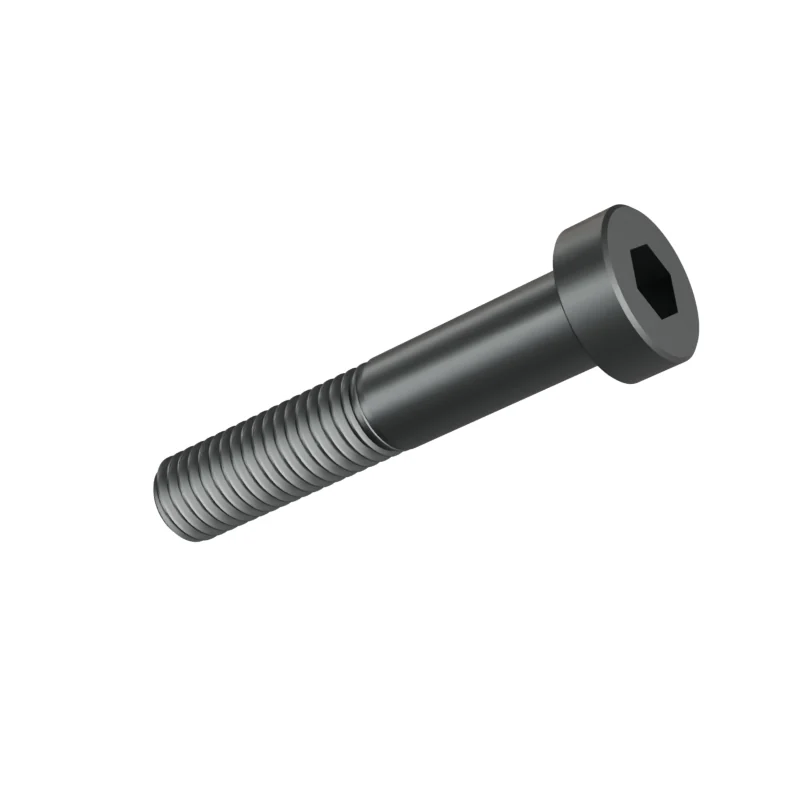

DIN 7984 M10 x 55 Low Head Socket Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M10 x 55
mm · DIN 7984 · dimensions from 2009-06 · current edition 2022-03| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| P | Thread pitch | 1.5 | – | – |
| Length | 55 | – | – | |
| s | Hex socket size | 7 | – | – |
| dk | Head diameter | 16 | – | – |
| k | Head height | 6 | – | – |
- Length under head
- 55 mm
- Approx. weight
- ≈ 38.88 kg per 1 000 pieces · Bare steel, before coating and packing.25.7 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
