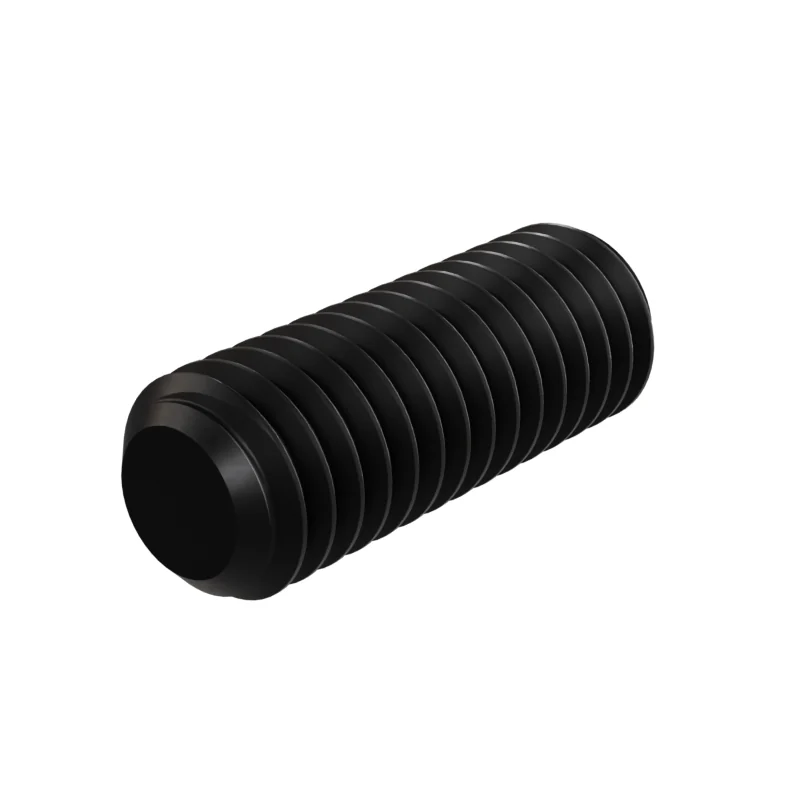

DIN 913 M6×16 Flat Point Set Screw6 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 913 · 1980-12
- Thread
- M6 · pitch 1 mm
- Length under head
- 16 mm
- Clearance / tap drill
- 6.4 / 6.6 / 7 mm · 5 mm
- Weight
- 2.51 kg per 1 000 pieces · From the standard's published table398 pieces per kg
Supplied to DIN 913 M6×16 — the figures shown here match ISO 4026. All 2 record the same figures in this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M6×16
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
Every standard listed here records the same figures at M6×16. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 45H | Blackened | — | |
| Carbon Steel | 45H | Plain | — | |
| Alloy Steel | 45H | Blackened | — | |
| Alloy Steel | 45H | Plain | — | |
| Stainless Steel | A2 | Plain | — | |
| Stainless Steel | A2 | Passivated | — |
Dimensions at M6×16
| Dimension | Value |
|---|---|
| P | 1 mm |
| Weight | 2.51 kg / 1000 pcs |
| Pieces per kg | 398 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 6.4 / 6.6 / 7 mm |
| Tap drill | 5 mm |
