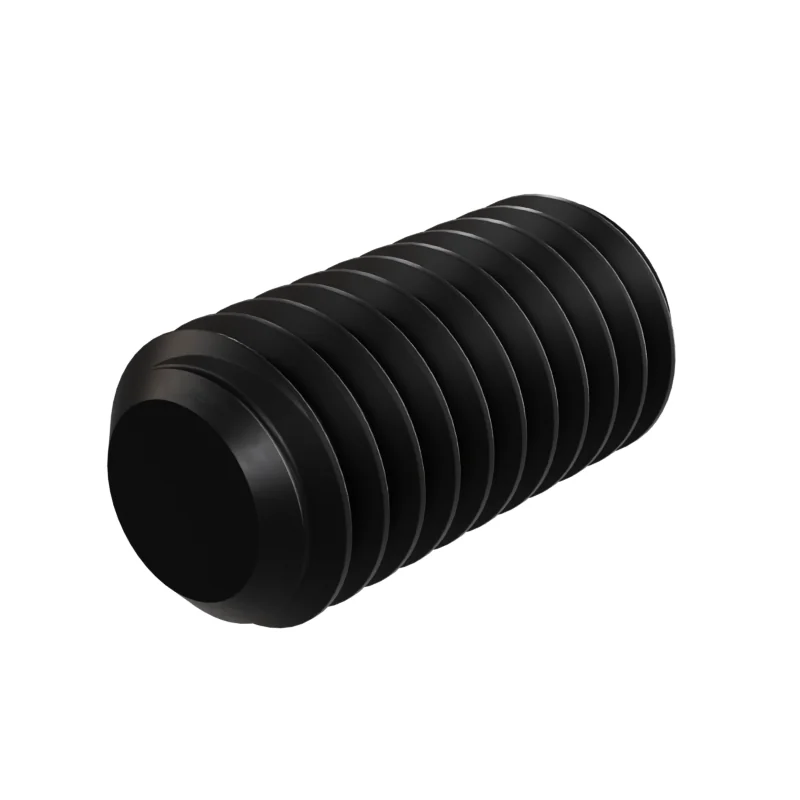

DIN 913 M6 x 12 Flat Point Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M6 x 12
mm · DIN 913 · 1980-12 · withdrawn| Dimension | Nominal | Min | Max | ISO 4026 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| l | Length | 12 | – | – | 12 |
| s | Hex socket size | 3 | – | – | 3 |
- ISO 4026
- Values in bold differ from DIN 913.
- Length
- 12 mm · 11.65–12.35 mm to DIN 913 product grade A
- Approx. weight
- ≈ 1.81 kg per 1 000 pieces · Bare steel, before coating and packing.552 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
