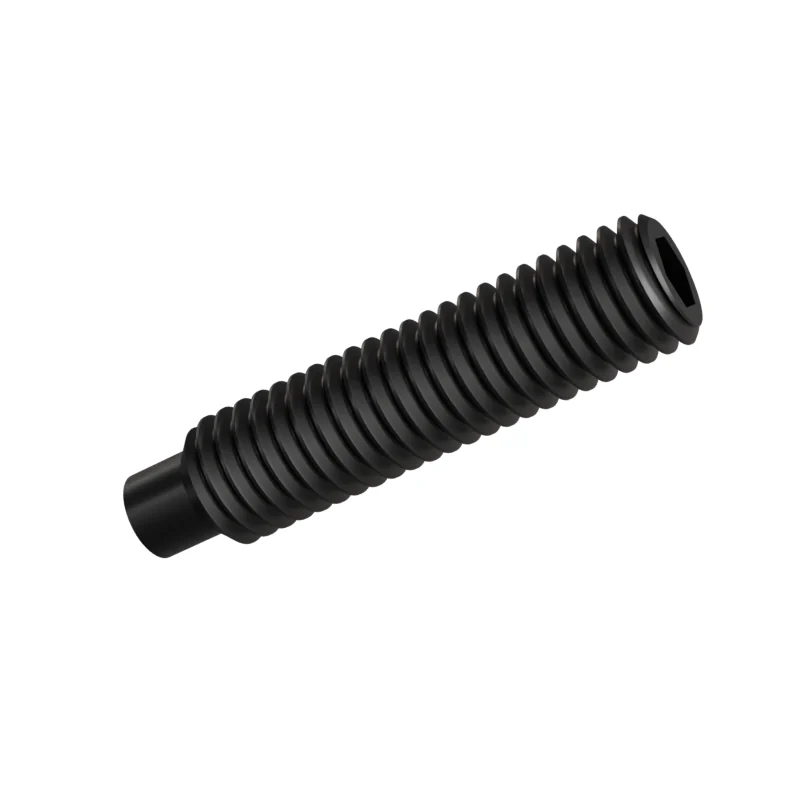

ISO 4028 M8 x 35 Dog Point Socket Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M8 x 35
mm · ISO 4028 · dimensions from 2003 · current edition 2026| Dimension | Nominal | Min | Max | DIN 915 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| P | Thread pitch | 1.25 | – | – | 1.25 |
| l | Length | 35 | – | – | 35 |
| s | Hex socket size | 4 | – | – | 4 |
| t | Key engagement, short length | – | 3 | – | — |
| t | Key engagement, long length | – | 5 | – | — |
| dp | Point diameter | – | 5.2 | 5.5 | — |
| z | Point length, short type | – | 2 | 2.25 | — |
| z | Point length, long type | – | 4 | 4.3 | — |
| Short length limit | 10 | – | – | — |
- DIN 915
- Values in bold differ from ISO 4028.
- Length
- 35 mm · 34.5–35.5 mm to ISO 4028 product grade A
- Approx. weight
- ≈ 9.93 kg per 1 000 pieces · Bare steel, before coating and packing.101 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine8.4 mm
Clearance hole · medium9 mm
Clearance hole · coarse10 mm
Tap drill6.8 mm
