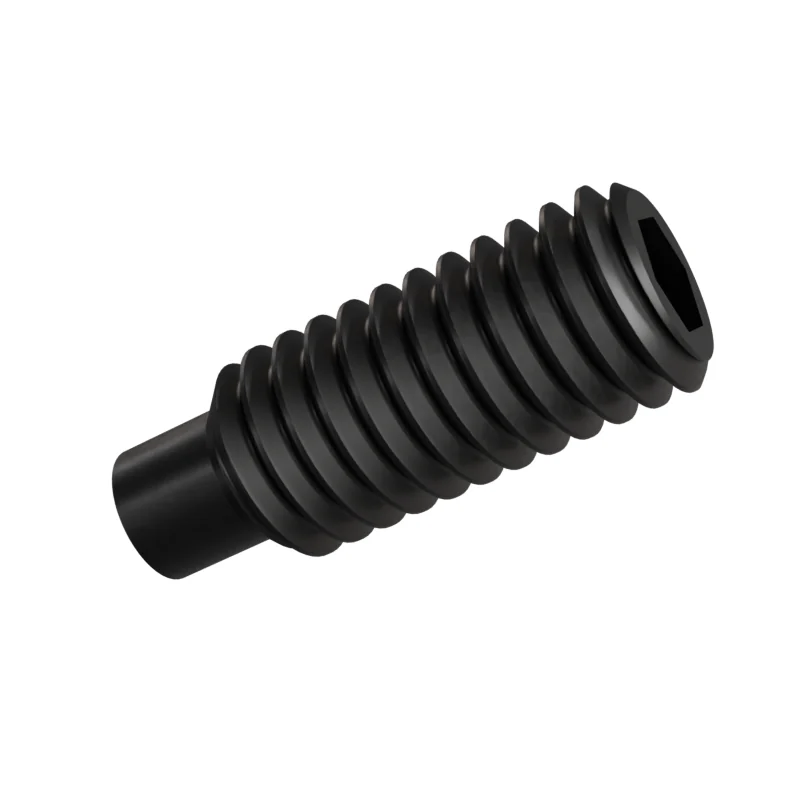

ISO 4028 M6 x 16 Dog Point Socket Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M6 x 16
mm · ISO 4028 · dimensions from 2003 · current edition 2026| Dimension | Nominal | Min | Max | DIN 915 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| l | Length | 16 | – | – | 16 |
| s | Hex socket size | 3 | – | – | 3 |
| t | Key engagement, short length | – | 2 | – | — |
| t | Key engagement, long length | – | 3.5 | – | — |
| dp | Point diameter | – | 3.7 | 4 | — |
| z | Point length, short type | – | 1.5 | 1.75 | — |
| z | Point length, long type | – | 3 | 3.25 | — |
| Short length limit | 8 | – | – | — |
- DIN 915
- Values in bold differ from ISO 4028.
- Length
- 16 mm · 15.65–16.35 mm to ISO 4028 product grade A
- Approx. weight
- ≈ 2.31 kg per 1 000 pieces · Bare steel, before coating and packing.433 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
