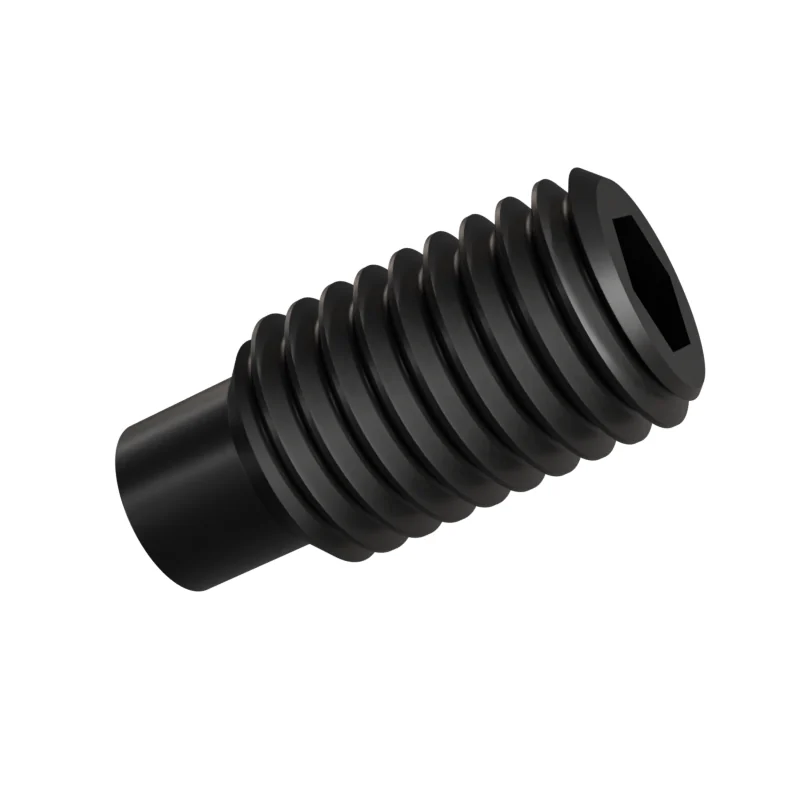

ISO 4028 M12 x 25 Dog Point Socket Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M12 x 25
mm · ISO 4028 · dimensions from 2003 · current edition 2026| Dimension | Nominal | Min | Max | DIN 915 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| l | Length | 25 | – | – | 25 |
| s | Hex socket size | 6 | – | – | 6 |
| t | Key engagement, short length | – | 4.8 | – | — |
| t | Key engagement, long length | – | 8 | – | — |
| dp | Point diameter | – | 8.14 | 8.5 | — |
| z | Point length, short type | – | 3 | 3.25 | — |
| z | Point length, long type | – | 6 | 6.3 | — |
| Short length limit | 16 | – | – | — |
- DIN 915
- Values in bold differ from ISO 4028.
- Length
- 25 mm · 24.58–25.42 mm to ISO 4028 product grade A
- Approx. weight
- ≈ 14.60 kg per 1 000 pieces · Bare steel, before coating and packing.68.5 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
