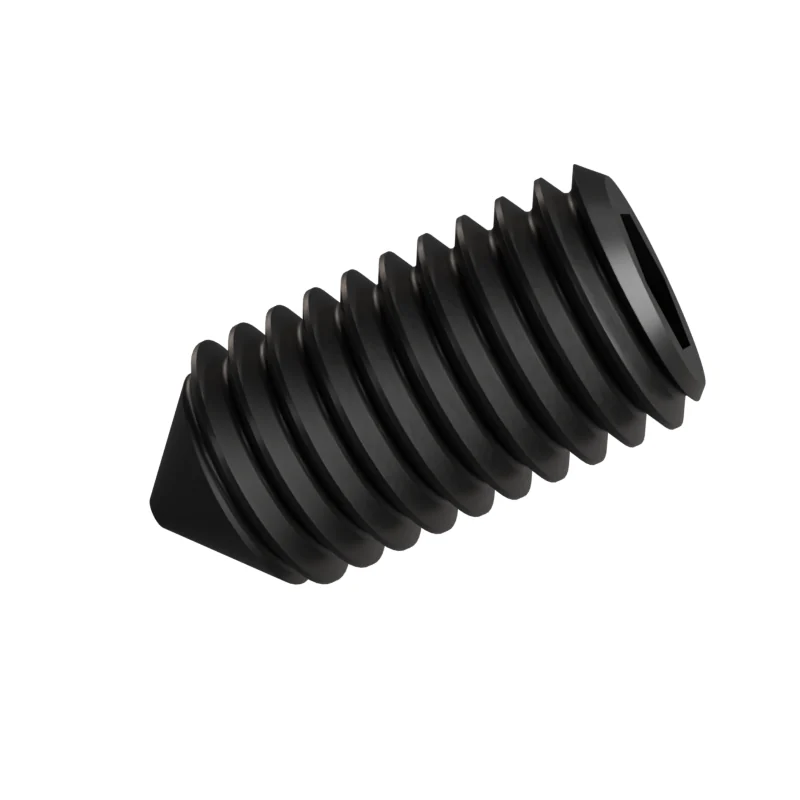

ISO 4027 M10 x 20 Cone Point Socket Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M10 x 20
mm · ISO 4027 · dimensions from 2003 · current edition 2026| Dimension | Nominal | Min | Max | DIN 914 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| l | Length | 20 | – | – | 20 |
| s | Hex socket size | 5 | 5.02 | 5.14 | 5 |
| dt | Point diameter | – | – | 2.5 | — |
| e | Socket across corners | – | 5.723 | – | — |
| t | Socket depth, short length | – | 4 | – | — |
| t | Socket depth, long length | – | 6 | – | — |
- DIN 914
- Values in bold differ from ISO 4027.
- Length
- 20 mm · 19.58–20.42 mm to ISO 4027 product grade A
- Approx. weight
- ≈ 8.44 kg per 1 000 pieces · Bare steel, before coating and packing.118 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
