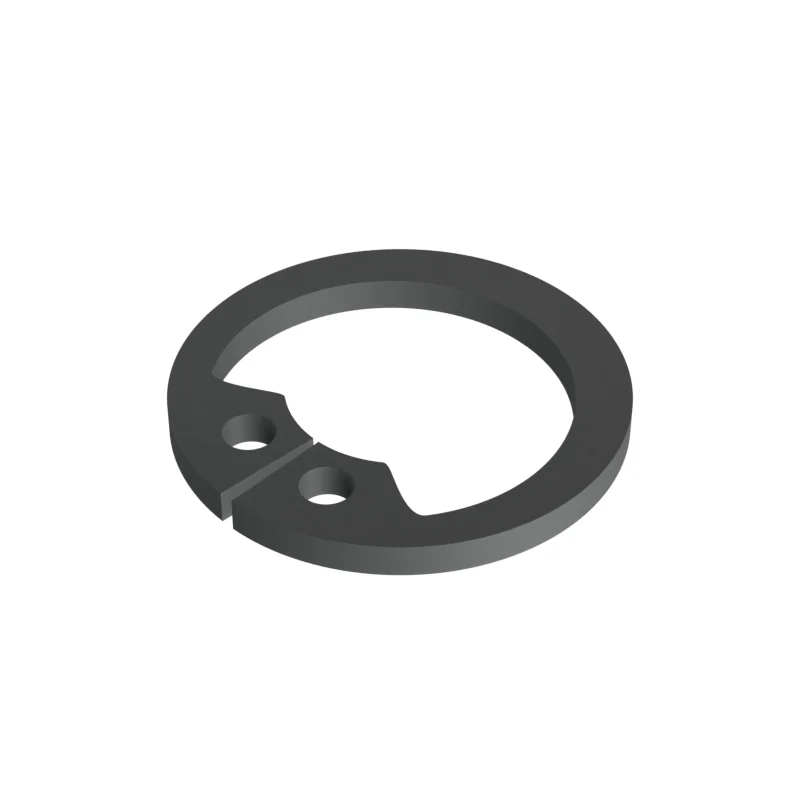

DIN 472 12 Retaining Ring for Bores
In stock in 5 material, grade and finish combinations.
Dimensions at 12
mm · DIN 472 · dimensions from 1981-09 · current edition 2026-05| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 12 | – | – |
| s | Ring thickness | 1 | – | – |
| d3 | Free diameter | 13 | – | – |
| a | Lug radial width | – | – | 3.4 |
| b | Ring width opposite opening | 1.7 | – | – |
| d5 | Lug hole diameter | 1.5 | – | – |
| d2 | Groove diameter | 12.5 | – | – |
| m | Groove width | 1.1 | – | – |
| t | Groove depth | 0.25 | – | – |
| n | Edge margin | – | 0.8 | – |
- Approx. weight
- ≈ 0.37 kg per 1 000 pieces · Bare steel, before coating and packing.2703 pieces per kg
