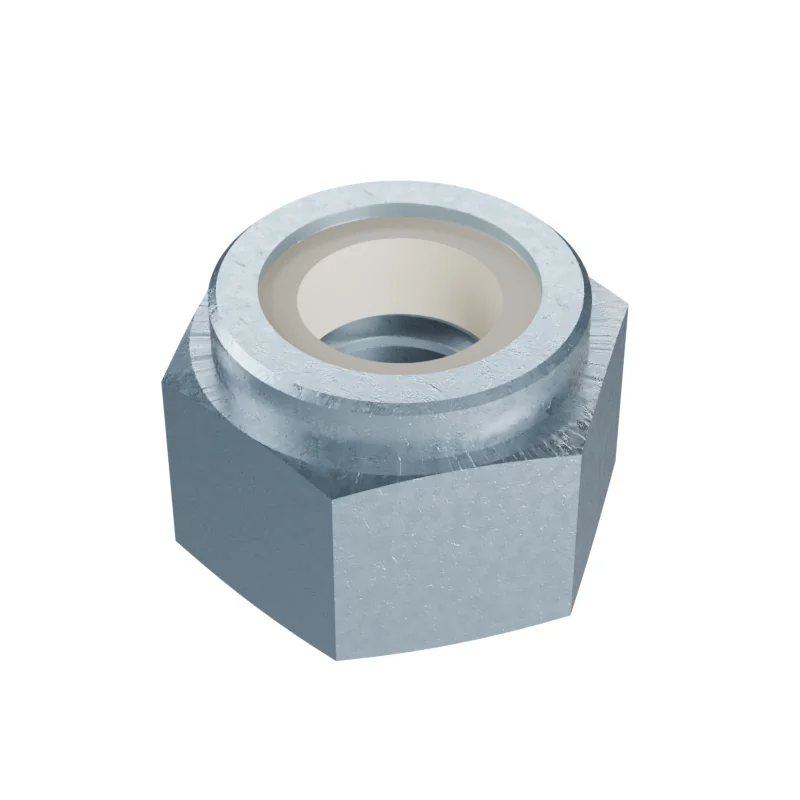

DIN 985 M4 Thin Nylon Insert Lock Nut
In stock in 19 material, grade and finish combinations.
Dimensions at M4
mm · DIN 985 · 1987-05 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 10511 | |
|---|---|---|---|---|---|
| d | Thread size | M4 | – | – | M4 |
| P | Thread pitch | 0.7 | – | – | 0.7 |
| s | Width across flats | – | – | 7 | 7 |
| e | Width across corners | – | 7.66 | – | 7.66 |
| h | Nut height | 5 | – | – | 5 |
| Approx. mass | 1 | – | – | — |
- ISO 10511
- Values in bold differ from DIN 985.
- Approx. weight
- ≈ 1.00 kg per 1 000 pieces · Bare steel, before coating and packing.1000 pieces per kg
