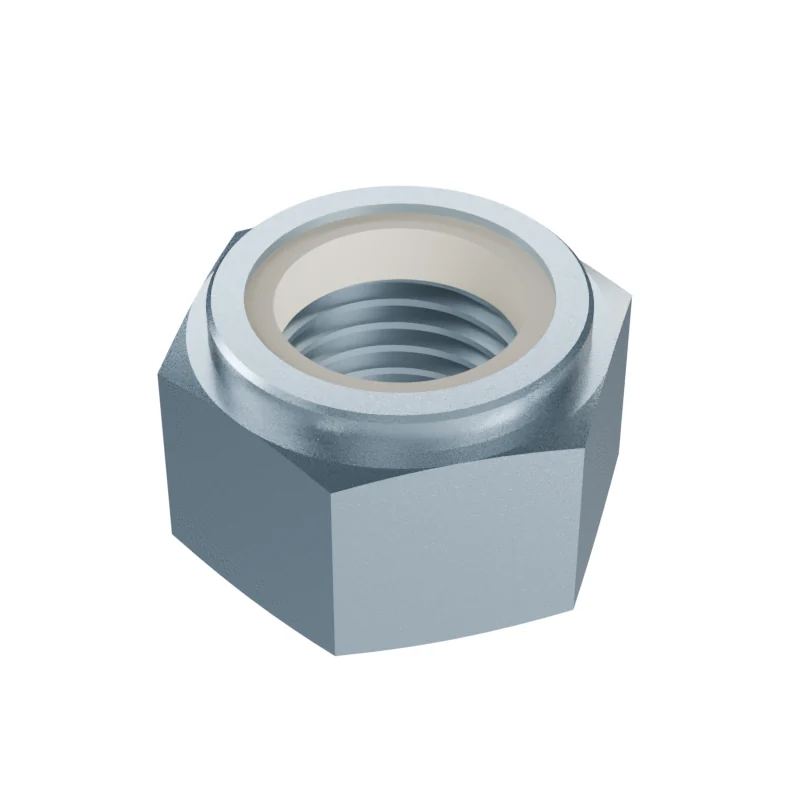

DIN 985 M36 Thin Nylon Insert Lock Nut
In stock in 26 material, grade and finish combinations.
Dimensions at M36
mm · DIN 985 · 1987-05 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 10511 | |
|---|---|---|---|---|---|
| d | Thread size | M36 | – | – | M36 |
| P | Thread pitch | 4 | – | – | 4 |
| s | Width across flats | – | – | 55 | 55 |
| e | Width across corners | – | 60.79 | – | 60.79 |
| h | Nut height | 36 | – | – | 25.5 |
| Approx. mass | 415 | – | – | — |
- ISO 10511
- Values in bold differ from DIN 985.
- Approx. weight
- ≈ 415.00 kg per 1 000 pieces · Bare steel, before coating and packing.2.4 pieces per kg
