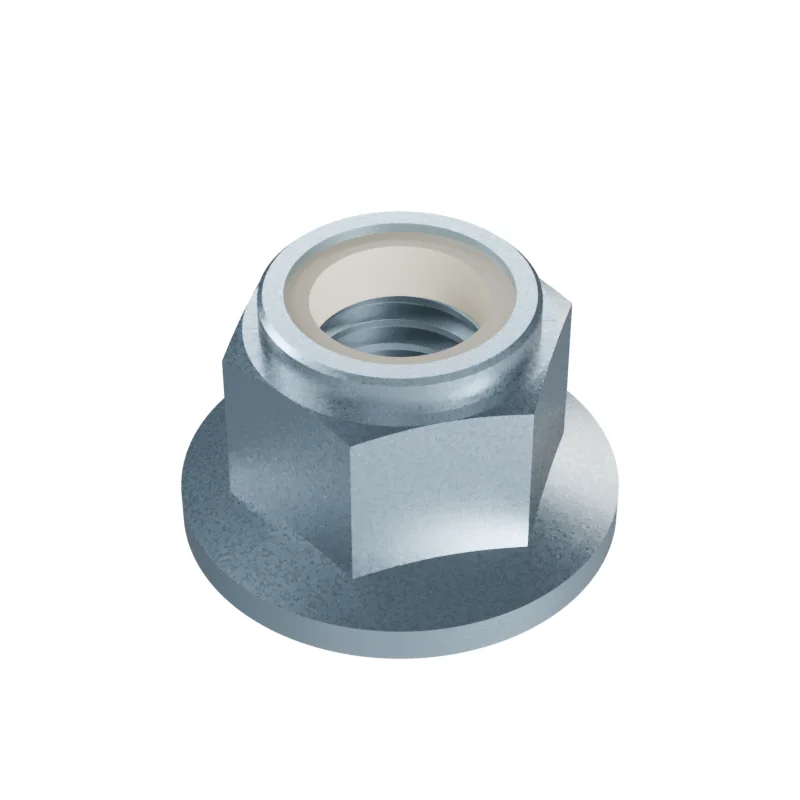

DIN 6926 M10 Non-Metallic Insert Flange Nut
In stock in 16 material, grade and finish combinations.
Dimensions at M10
mm · DIN 6926 · 1983-11 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| P | Thread pitch | 1.5 | – | – |
| s | Width across flats | – | – | 15 |
| e | Width across corners | – | 16.64 | – |
| m | Nut height | 9.6 | – | – |
| dc | Flange diameter | 21.8 | – | – |
- Approx. weight
- ≈ 9.91 kg per 1 000 pieces · Bare steel, before coating and packing.101 pieces per kg
