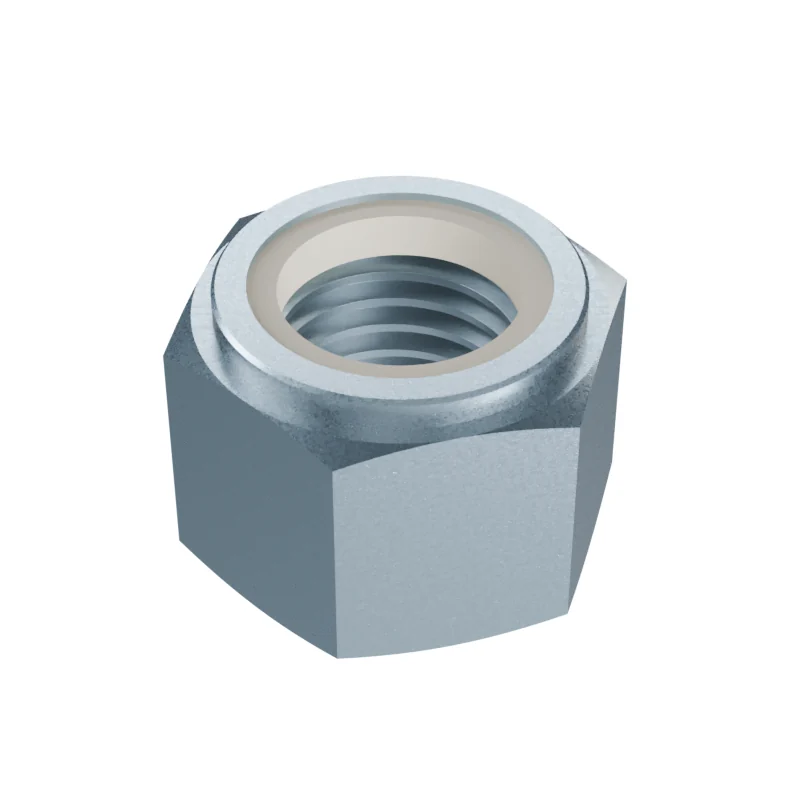

DIN 982 M16 Nylon Insert Lock Nut
In stock in 16 material, grade and finish combinations.
Dimensions at M16
mm · DIN 982 · 1987-05 · withdrawn| Dimension | Nominal | Min | Max | ISO 7040 | |
|---|---|---|---|---|---|
| d | Thread size | M16 | – | – | M16 |
| P | Thread pitch | 2 | – | – | 2 |
| da | Underhead diameter | – | – | 17.3 | 17.3 |
| da | Clearance diameter | – | 16 | – | 16 |
| dw | Bearing diameter | – | 22.5 | – | 22.49 |
| e | Width across corners | – | 26.75 | – | 26.75 |
| h | Overall height | – | 17.3 | 18 | 17.8–19.1 |
| m | Thread height | – | 14.1 | – | 14.1 |
| m' | Wrenching height | – | 11.28 | – | 11.28 |
| s | Width across flats | – | 23.67 | 24 | 23.67–24 |
- ISO 7040
- Values in bold differ from DIN 982.
- Approx. weight
- ≈ 37.80 kg per 1 000 pieces · Bare steel, before coating and packing.26.5 pieces per kg
