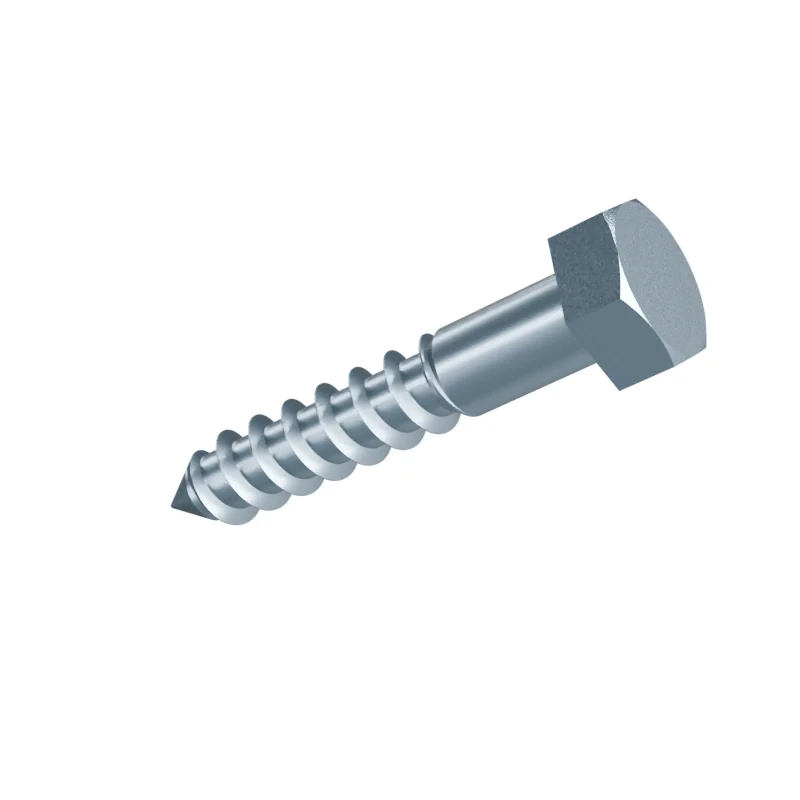

DIN 571 8 x 45 Hexagon Head Wood Screw
In stock in 5 material, grade and finish combinations.
Dimensions at 8 x 45
mm · DIN 571 · dimensions from 1986-12 · current edition 2016-12| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 8 | – | – |
| l | Length | 45 | – | – |
| s | Width across flats | – | – | 13 |
| e | Width across corners | – | 14.2 | – |
| k | Head height | 5.5 | – | – |
- Length under head
- 45 mm · 43.75–46.25 mm to DIN 571
- Approx. weight
- ≈ 16.90 kg per 1 000 pieces · Bare steel, before coating and packing.59.2 pieces per kg
