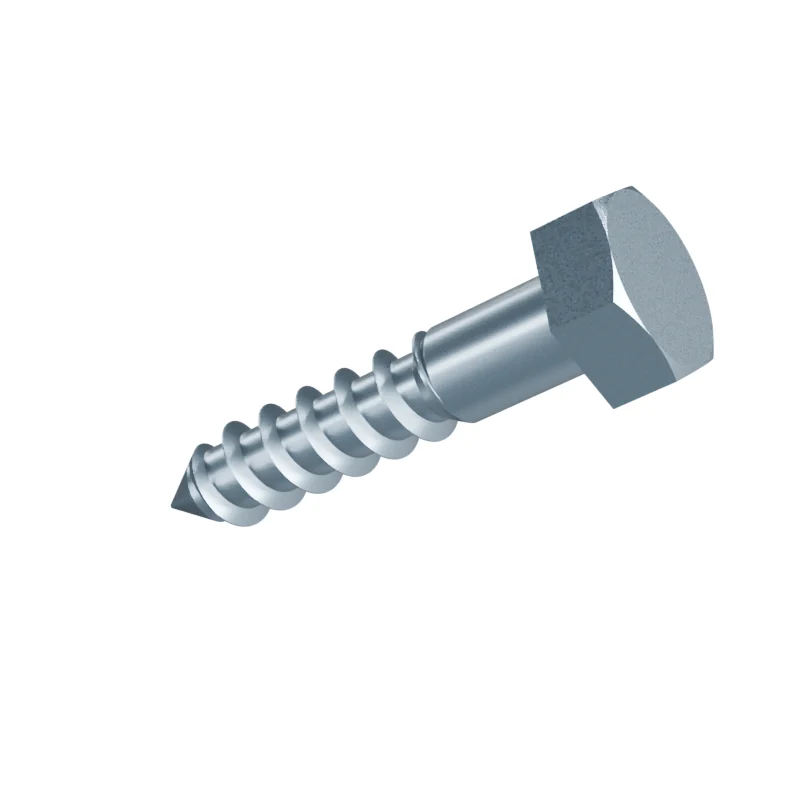

DIN 571 7 x 35 Hexagon Head Wood Screw
In stock in 4 material, grade and finish combinations.
Dimensions at 7 x 35
mm · DIN 571 · dimensions from 1986-12 · current edition 2016-12| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 7 | – | – |
| l | Length | 35 | – | – |
| s | Width across flats | – | – | 12 |
| e | Width across corners | – | 13.07 | – |
| k | Head height | 5 | – | – |
- Length under head
- 35 mm · 33.75–36.25 mm to DIN 571
