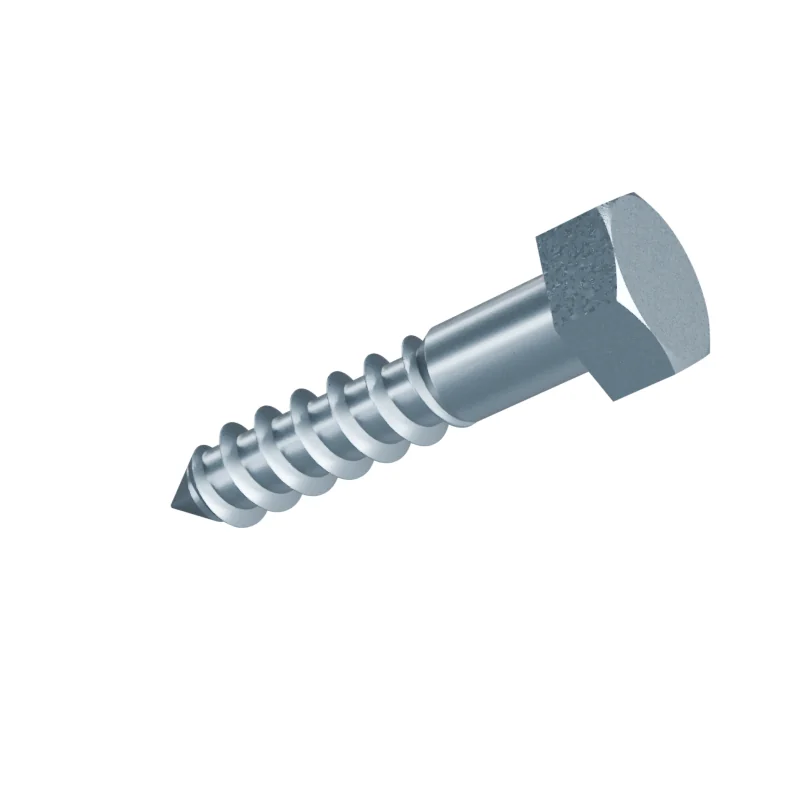

DIN 571 5 x 25 Hexagon Head Wood Screw
In stock in 4 material, grade and finish combinations.
Dimensions at 5 x 25
mm · DIN 571 · dimensions from 1986-12 · current edition 2016-12| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 5 | – | – |
| l | Length | 25 | – | – |
| s | Width across flats | – | – | 8 |
| e | Width across corners | – | 8.63 | – |
| k | Head height | 3.5 | – | – |
- Length under head
- 25 mm · 23.95–26.05 mm to DIN 571
- Approx. weight
- ≈ 4.02 kg per 1 000 pieces · Bare steel, before coating and packing.249 pieces per kg
