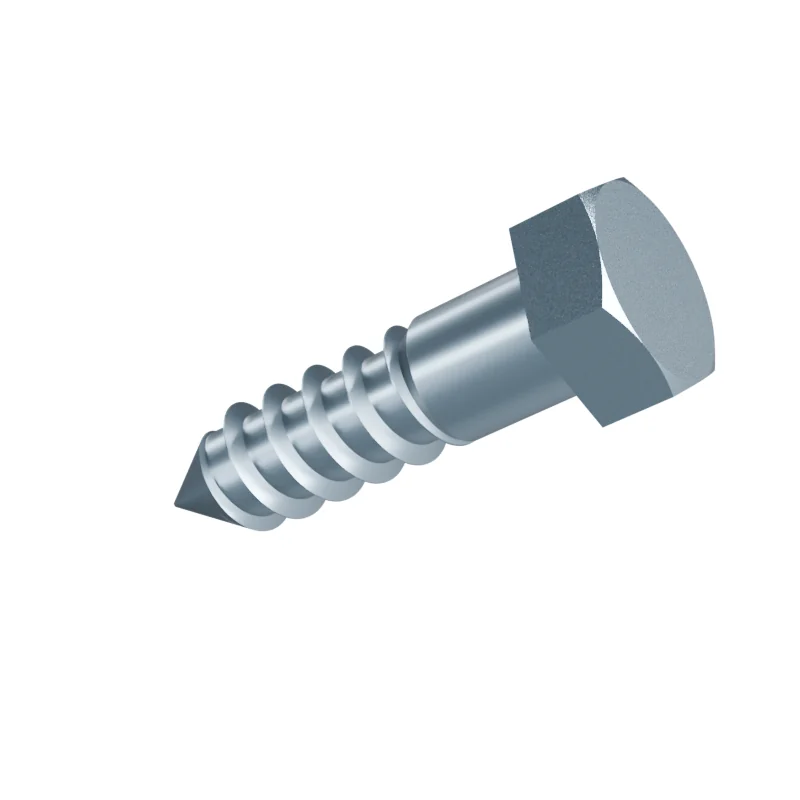

DIN 571 16 x 60 Hexagon Head Wood Screw
In stock in 5 material, grade and finish combinations.
Dimensions at 16 x 60
mm · DIN 571 · dimensions from 1986-12 · current edition 2016-12| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 16 | – | – |
| l | Length | 60 | – | – |
| s | Width across flats | – | – | 24 |
| e | Width across corners | – | 26.17 | – |
| k | Head height | 10 | – | – |
- Length under head
- 60 mm · 58.5–61.5 mm to DIN 571
- Approx. weight
- ≈ 94.90 kg per 1 000 pieces · Bare steel, before coating and packing.10.5 pieces per kg
