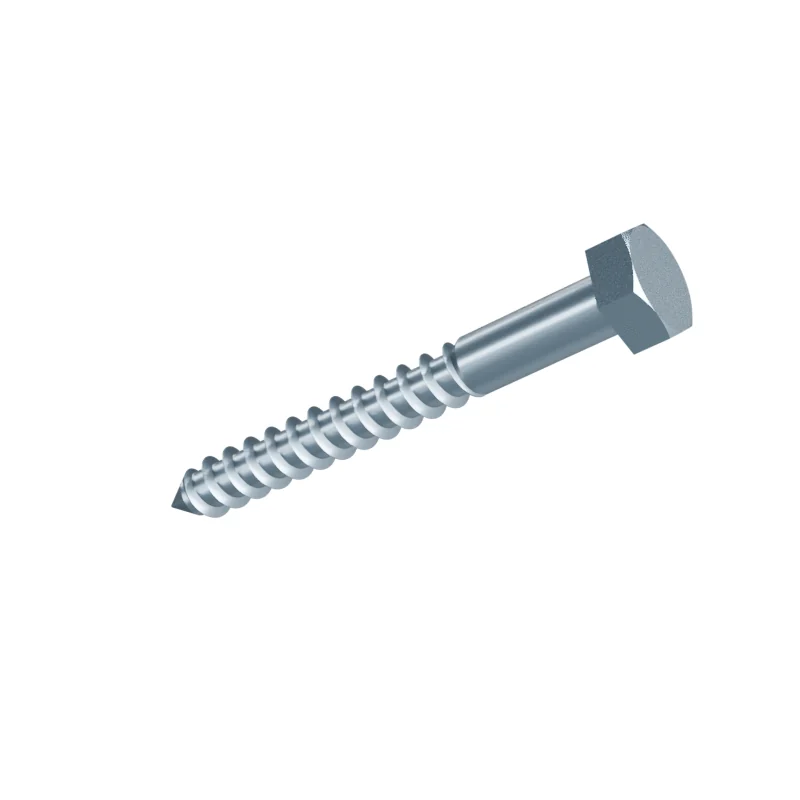

DIN 571 10 x 90 Hexagon Head Wood Screw
In stock in 5 material, grade and finish combinations.
Dimensions at 10 x 90
mm · DIN 571 · dimensions from 1986-12 · current edition 2016-12| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 10 | – | – |
| l | Length | 90 | – | – |
| s | Width across flats | – | – | 17 |
| e | Width across corners | – | 18.72 | – |
| k | Head height | 7 | – | – |
- Length under head
- 90 mm · 88.25–91.75 mm to DIN 571
- Approx. weight
- ≈ 49.90 kg per 1 000 pieces · Bare steel, before coating and packing.20.0 pieces per kg
