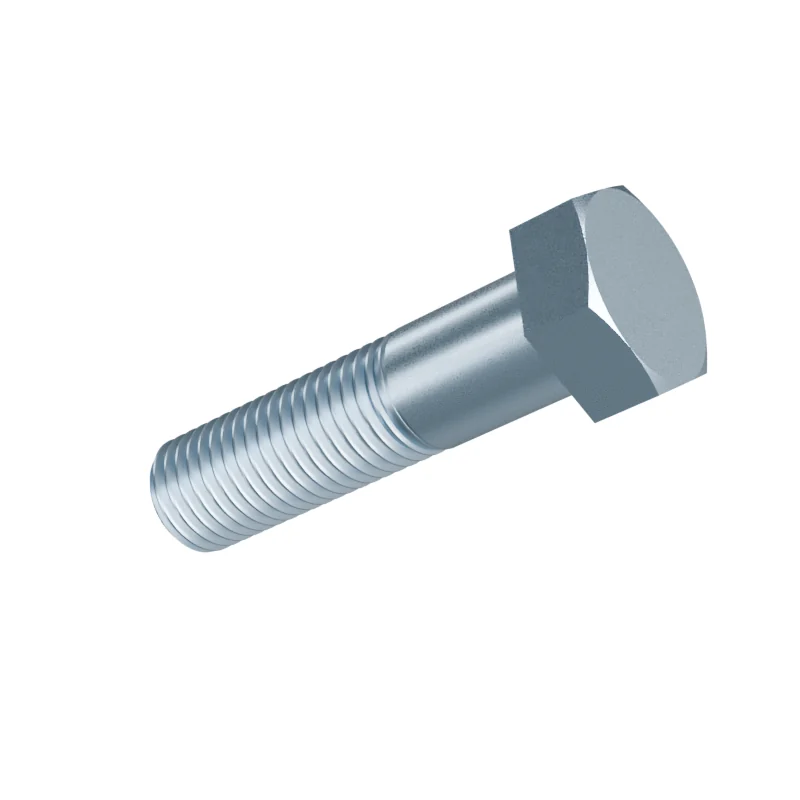

DIN 931 M24 x 95 Partial Thread Hex Bolt
In stock in 7 material, grade and finish combinations.
Dimensions at M24 x 95
mm · DIN 931 · 1987 · withdrawn| Dimension | Nominal | Min | Max | ISO 4014 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| l | Length | 95 | – | – | 95 |
| s | Width across flats | – | – | 36 | 36 |
| e | Width across corners | – | 39.98 | – | 39.98 |
| k | Head height | 15 | – | – | 15 |
| b | Thread length | 54 | – | – | 54 |
- ISO 4014
- Values in bold differ from DIN 931.
- Length under head
- 95 mm · 94.3–95.7 mm to DIN 931 product grade A
- Approx. weight
- ≈ 435.39 kg per 1 000 pieces · Bare steel, before coating and packing.2.3 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine25 mm
Clearance hole · medium26 mm
Clearance hole · coarse28 mm
Tap drill21 mm
