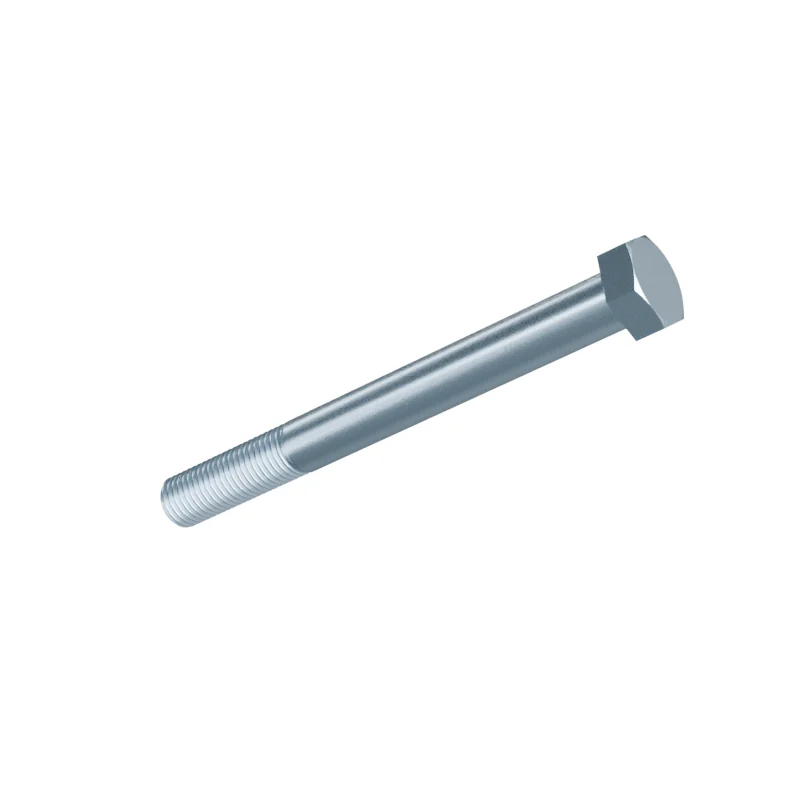

DIN 931 M16 x 160 Partial Thread Hex Bolt
In stock in 15 material, grade and finish combinations.
Dimensions at M16 x 160
mm · DIN 931 · 1987 · withdrawn| Dimension | Nominal | Min | Max | ISO 4014 | |
|---|---|---|---|---|---|
| d | Thread size | M16 | – | – | M16 |
| P | Thread pitch | 2 | – | – | 2 |
| l | Length | 160 | – | – | 160 |
| s | Width across flats | – | – | 24 | 24 |
| e | Width across corners | – | 26.75 | – | 26.75 |
| k | Head height | 10 | – | – | 10 |
| b | Thread length | 44 | – | – | 44 |
- ISO 4014
- Values in bold differ from DIN 931.
- Length under head
- 160 mm · 158–162 mm to DIN 931 product grade B
- Approx. weight
- ≈ 279.61 kg per 1 000 pieces · Bare steel, before coating and packing.3.6 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine17 mm
Clearance hole · medium17.5 mm
Clearance hole · coarse18.5 mm
Tap drill14 mm
