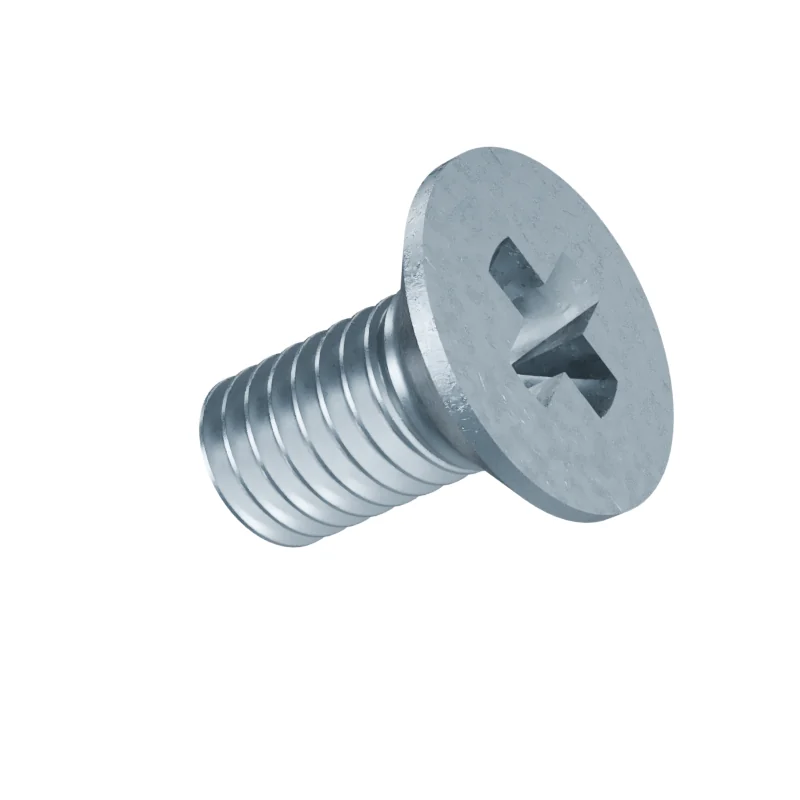

DIN 965 M3 x 6 Countersunk Screw
In stock in 5 material, grade and finish combinations.
Dimensions at M3 x 6
mm · DIN 965 · 1990-08 · withdrawn| Dimension | Nominal | Min | Max | ISO 7046 | |
|---|---|---|---|---|---|
| d | Thread size | M3 | – | – | M3 |
| P | Thread pitch | 0.5 | – | – | 0.5 |
| l | Length | 6 | – | – | 6 |
| dk | Head diameter | 5.6 | – | – | 5.5 |
| k | Head height | 1.65 | – | – | 1.65 |
| b | Thread length | 19 | – | – | 25 |
- ISO 7046
- Values in bold differ from DIN 965.
- Length incl. head
- 6 mm
- Approx. weight
- ≈ 0.39 kg per 1 000 pieces · Bare steel, before coating and packing.2592 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine3.2 mm
Clearance hole · medium3.4 mm
Clearance hole · coarse3.6 mm
Tap drill2.5 mm
